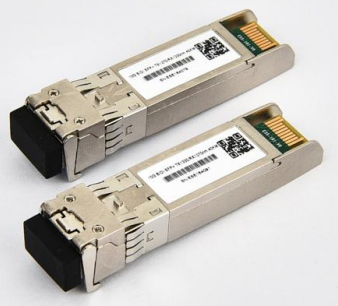

TK-B23(32)92-3LCD10 10Gbps SFP+ Bi-Directional Transceiver, 10km Reach Tx1270/1330nm / Rx1330/1270 nm
تفاصيل المنتج:
| مكان المنشأ: | الصين ، شنتشن |
| اسم العلامة التجارية: | DF/OEM/Nuetral |
| إصدار الشهادات: | CE/ROHS/REACH/ISO9001/ISO14001 |
| رقم الموديل: | TK-B23 (32) 92-3LCD10 |
شروط الدفع والشحن:
| الحد الأدنى لكمية: | قابل للتفاوض |
|---|---|
| الأسعار: | negotiable denpend on QTY |
| تفاصيل التغليف: | صندوق نفطة + كرتون |
| وقت التسليم: | 5-9 أيام عمل تعتمد على الكمية |
| شروط الدفع: | ويسترن يونيون، / تي تي، موني جرام / بايبال |
| القدرة على العرض: | 1000pcs/يوم |
|
معلومات تفصيلية |
|||
| اسم المنتج: | TK-B23(32)92-3LCD10 جهاز إرسال واستقبال SFP+ ثنائي الاتجاه بسرعة 10 جيجابت في الثانية، يصل إلى 10 كم | جهد الإمداد: | 3.14-3.46 فولت |
|---|---|---|---|
| العرض الحالي: | 300 مللي أمبير | إدخال المعاوقة التفاضلية: | 100 |
| تأرجح إدخال البيانات ذو نهاية واحدة: | 180-700 مللي أمبير | اختلاف تأرجح إدخال البيانات: | 400-1800 فولت |
| إرسال تعطيل وقت التأكيد: | 10 لنا | تأرجح إخراج البيانات التفاضلية: | 300-850 مللي أمبير |
| درجة حرارة حالة التشغيل: | 0 إلى +70 درجة مئوية | ضمان: | 1 سنة، صيانة مدى الحياة |
| العلامة التجارية الألياف: | كورنينج، واي أو إف سي، أو إف إس، دراكا | ||
| إبراز: | 10Gbps SFP+ transceiver 10km reach,Bi-Directional transceiver Tx1270/1330nm,SFP+ optical module with warranty,Bi-Directional transceiver Tx1270/1330nm,SFP+ optical module with warranty |
||
منتوج وصف
TK-B23(32)92-3LCD10 10Gbps SFP+ Bi-Directional Transceiver
TK-B23(32)92-3LCD10
10Gbps SFP+ Bi-Directional Transceiver, 10km Reach
Tx1270/1330nm / Rx1330/1270 nm
Tx1270/1330nm / Rx1330/1270 nm
Product Overview
The TK-B23(32)92-3LCD10 series single mode transceiver is a small form factor pluggable module designed for duplex optical data communications, including 10GBASE-LR/LW as defined by IEEE 802.3ae. Featuring an SFP+ 20-pin connector, it enables hot plug capability for seamless integration.
This module is engineered for single mode fiber operation with nominal wavelengths of 1270nm or 1330nm. The transmitter section employs a multiple quantum well DFB laser that complies with Class 1 laser safety standards per IEC-60825.
The receiver section incorporates an integrated InGaAs detector preamplifier (IDP) mounted in an optical header, paired with a limiting post-amplifier IC for optimal performance.
Applications
- 10GBASE-LR at 10.3125Gbps
- 10GBASE-LW at 9.953Gbps
- Other Optical Links
Key Features
- Supports 9.95Gb/s to 10.3Gb/s data rates
- Simplex LC Connector Bi-Directional SFP+ Optical Transceiver
- Single 3.3V Supply
- Up to 10km on 9/125um SMF
- A:1270nm DFB Laser transmitter, 1330nm receiver
- B:1330nm DFB Laser transmitter, 1270nm receiver
- Compliant with IEEE 802.3ae 10GBASE-LR and 10GBASE-LW
- SFP+ MSA SFF-8431 Compliant
- Digital Diagnostic SFF-8472 Compliant
- RoHS compliant and Lead Free
- Operating case temperature: Standard: 0 ~ 70 °C
Compliance Standards
- SFP+ MSA Compliant
- SFF-8472 reversion 9.5 compliant
- IEEE802.3-2005 compliant
- Telcordia GR-468-CORE compliant
- FCC 47 CFR Part 15, Class B compliant
- FDA 21 CFR 1040.10 and 1040.11, class1 compliant
- RoHS compliant
Technical Specifications
Technical Notes
- Connected directly to TX data input pins. AC coupled thereafter.
- Or open circuit
- Into 100 ohms differential termination.
- 20 - 80%.
- Loss Of Signal is LVTTL. Logic 0 indicates normal operation; logic 1 indicates no signal detected.
- Receiver sensitivity is compliant with power supply sinusoidal modulation of 20 Hz to 1.5 MHz up to specified value applied through the recommended power supply filtering network.
Product Images
Why Choose TAKFLY
- 25+ years of manufacturing experience in fiber optic products
- 450+ assembly workers with 3+ years of experience
- 10+ R&D Engineers dedicated to innovation
- 16 Germany-imported Injection Machines and production lines
- 30+ testing machines including OTDR, 3D, VFL, IL&RL test instruments
- Comprehensive testing equipment: tension strength testers, crush resistance testers, power meter testers, light checkers
- OEM branding accepted
- Global exhibition participation: OFC, ECOC, CommunicAsia, NETCOM, AFRICACOM, SVIAZ ICT, CommunicIndonesia, Global Source Electronic Exhibition
Quality Control
- Raw material spot checking before production
- Full inspection after every individual process
- Comprehensive half-done production checks
- Complete finished product inspection before packing
- Pre-shipping spot checks
Delivery Information
- Samples: 1-3 working days
- Mass Production Orders: 3-7 working days
- Packaging: Plastic bags, cartons, and pallets available per request
Frequently Asked Questions
Q1: How can I get your catalogue and price list?
Please provide your email or contact information through our website to receive our catalogue and price list.
Q2: Can I negotiate the prices?
Yes, we may consider discounts for multiple container loads of mixed goods.
Q3: How much will the shipping charges be?
Shipping charges depend on your shipment size and shipping method. We will provide charges upon request.
Q4: Can I visit you?
Certainly! Our factory is located in Shenzhen, China. Please contact us to schedule an appointment.
Q5: What if there is quality problem when we get the goods?
If you encounter quality issues upon unpacking, please take photos for our reference. Our QC department will investigate and provide the best solutions, along with implementing quality improvements for future production.
Q6: What is your terms of packing?
We typically pack goods in blister boxes and cartons, but can accommodate custom packaging requests from customers.
Q7: What is your terms of payment?
T/T 30% as deposit, and 70% balance before delivery. We provide photos of products and packaging before final payment.
Q8: What is your terms of delivery?
EXW, FOB, CFR, CIF, DDU
Q9: How about your delivery time?
Generally 5-7 working days after receiving advance payment. Specific delivery time depends on items and order quantity.
Q10: Can you produce according to the samples?
Yes, we can manufacture products based on your samples or technical drawings.
If you're interested in our products or have any questions, feel free to contact us at any time!
