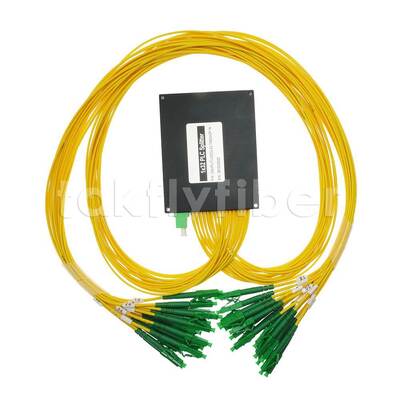

LC Adapter Input Aluminum Alloy Box Packing PLC Splitter 1x32 with LC/APC Connectors for FTTH FTTX
تفاصيل المنتج:
| مكان المنشأ: | شنتشن، الصين |
| اسم العلامة التجارية: | DF/Takfly/Neutral |
| إصدار الشهادات: | CE/ROHS/REACH/ISO9001/ISO14001 |
| رقم الموديل: | TK-PLC-1x16-SA-1M |
شروط الدفع والشحن:
| الحد الأدنى لكمية: | 100 |
|---|---|
| الأسعار: | US$0.01~US$13.99/PC |
| تفاصيل التغليف: | تصدير التعبئة القياسية |
| وقت التسليم: | 5-7 أيام عمل |
| شروط الدفع: | ل / c، / تي تي، ويسترن يونيون |
| القدرة على العرض: | 5000 قطعة/أسبوع |
|
معلومات تفصيلية |
|||
| اسم المنتج: | LC محول إدخال سبائك الألومنيوم صندوق التعبئة PLC الفاصل 1x32 مع موصلات LC / APC لـ FTTH FTTX | نوع الألياف: | G.657A |
|---|---|---|---|
| الطول الموجي: | 1260 ~ 1650 نانومتر | قطر الكابل: | 2.0 ملم |
| مدخل: | محول LC البسيط | الإخراج: | ضفيرة كابل 2.0 مم |
| طول الكابل: | 1 م ، 1.5 م ، حسب الطلب | حجم التعبئة: | 100 × 80 × 10 ملم |
| Max. الأعلى. Uniformity التوحيد: | 1.5 ديسيبل | طلب: | ftth fttb fttx pon catv |
| إبراز: | LC PLC splitter 1x32 with LC/APC connectors,aluminum alloy FTTH PLC splitter,fiber optic splitter for FTTX networks,aluminum alloy FTTH PLC splitter,fiber optic splitter for FTTX networks |
||
منتوج وصف

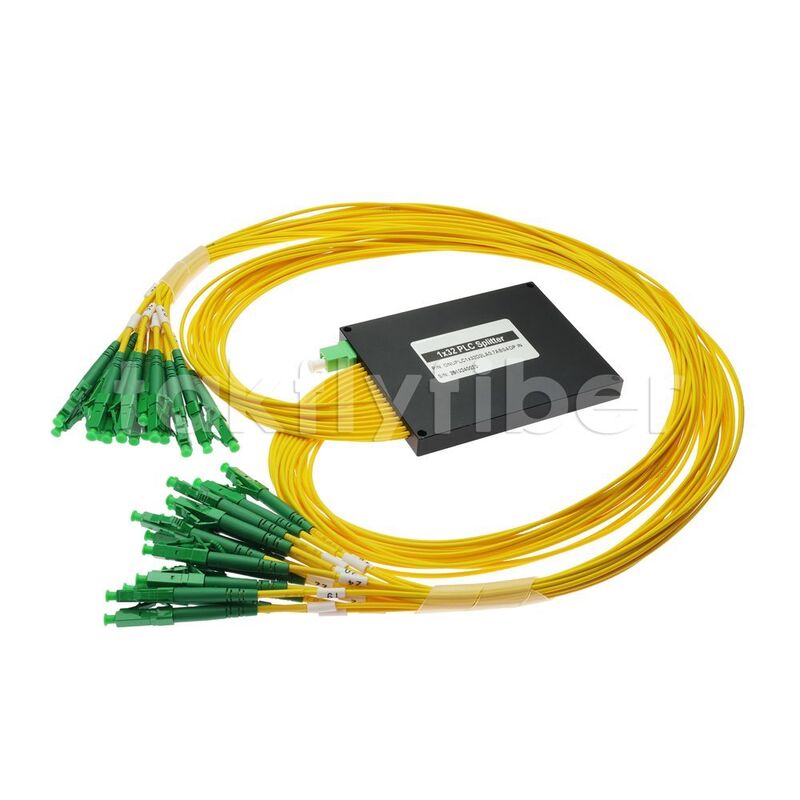

LC Adapter Input Aluminum Alloy Box Packing PLC Splitter 1x32 with LC/APC Connectors for FTTH FTTX
Planar lightwave circuit (PLC) splitter is an optical power management device fabricated using silica optical waveguide technology to distribute optical signals from Central Office (CO) to multiple premise locations. It splits a single input signal at 1260-1650nm equally into 32 output signals and features LC/APC connectors with bend insensitive fibre (BIF) having a 10 mm bend radius to minimize loss.
Product Features
- Broadband Operation Wavelength
- Low Insertion loss
- Low PDL
- Compact Design
- Good channel-to-channel uniformity
- High Reliability and Stability
- Good uniformity and low insertion loss
- Excellent Environmental Stability
Applications
- Fiber to The Home (FTTH)
- Passive optical networks (PON)
- Local Area Networks (LAN)
- Cable Television (CATV)
- Test Equipment
- FTTX Systems
- PON Networks
- CATV Links
- Optical Signal Distribution
Technical Specifications
| Item | Parameter |
|---|---|
| Operating Wavelength(nm) | 1260 ~ 1650 |
| Type(1*N) | 1*2 | 1*4 | 1*8 | 1*16 | 1*32 | 1*64 |
| Max.Insertion Loss (dB) | 3.9 | 7.2 | 10.3 | 13.5 | 16.8 | 20.3 |
| Max.Uniformity(dB) | 0.8 | 0.8 | 0.8 | 1.0 | 1.5 | 2.0 |
| Min.Return Loss(dB) | 55 |
| Max.PDL(dB) | 0.2 | 0.3 | 0.3 | 0.3 | 0.3 | 0.5 |
| Type(2*N) | 2*2 | 2*4 | 2*8 | 2*16 | 2*32 | 2*64 |
| Max.Insertion Loss(dB) | 4.2 | 7.5 | 10.6 | 13.9 | 17.2 | 20.8 |
| Max.Uniformity(dB) | 0.8 | 1.0 | 1.2 | 1.5 | 1.8 | 2.0 |
| Min.Return Loss(dB) | 55 |
| Max.PDL(dB) | 0.2 | 0.3 | 0.3 | 0.3 | 0.3 | 0.5 |
| Fiber Type | ITU-T G657A1, G657A2 and G.652D |
| Max.Temperature Stability(dB) | 0.5 (Typical 0.3) |
| Operating Temperature(℃) | -40 ~ +85 |
| Storage Temperature(℃) | -40 ~ +85 |
All measurements are made at room temperature, and connectors not included
Packing Dimensions
| Package Type | Unit(mm) | 1x2 | 1x4 | 1x8 | 1x16 | 1x32 | 1x64 |
|---|---|---|---|---|---|---|---|
| Basic Packaging Metal box | L×W×H | 40×4×4 | 40×4×4 | 40×4×4 | 50×7×4 | 60×7×4 | 60×12×4 |
| Mini Module Packaging Metal box | L×W×H | 60×7×4 | 60×7×4 | 60×7×4 | 60×12×4 | 80×20×6 | 100×40×6 |
| Module Packaging Plastic box | L×W×H | 100×80×10 | 100×80×10 | 100×80×10 | 120×80×18 | 120×80×18 | 140×115×18 |
Why Choose TAKFLY
- More than 25 years manufacturing experience in fiber optic products
- More than 450 assembly workers with 6+ years experience
- More than 10 R&D Engineers
- 16 sets of Germany imported injection machines and 16 production lines
- More than 30 sets of testing machines: OTDR, 3D, VFL, IL&RL test instruments; tension strength testers, crush resistance testers, power meter testers, light checkers, etc
- OEM branding accepted
- Regular exhibition participation: OFC, ECOC, CommunicAsia, NETCOM, AFRICACOM, SVIAZ ICT, CommunicIndonesia, Global Source Electronic Exhibition, etc.
Quality Control
- Spot check raw material incoming inspection before production
- Full inspection after every individual process completion
- Full inspection of production half-done stages
- Full inspection of finished products before packing
- Spot check before shipping
Delivery Information
- Samples: 1-3 working days
- Mass production orders: 3-7 working days
- Packaging: Plastic bag, carton and pallet options available according to your requirements
