FTTH High-Density MPO/MTP Cassette Management Fiber Optic Patch Panel Slidable Type | Data Center and Network Solution
تفاصيل المنتج:
| مكان المنشأ: | الصين ، شنتشن |
| اسم العلامة التجارية: | DF/OEM/Nuetral |
| إصدار الشهادات: | CE/ROHS/REACH/ISO9001/ISO14001 |
| رقم الموديل: | لوحة إدارة الكاسيت MPO/MTP من النوع القابل للانزلاق |
شروط الدفع والشحن:
| الحد الأدنى لكمية: | قابل للتفاوض |
|---|---|
| الأسعار: | negotiable denpend on QTY |
| تفاصيل التغليف: | صندوق نفطة + كرتون |
| وقت التسليم: | 5-9 أيام عمل تعتمد على الكمية |
| شروط الدفع: | Western Union ، T/T ، Moneygram/PayPal |
| القدرة على العرض: | 1000 قطعة/يوم |
|
معلومات تفصيلية |
|||
| اسم المنتج: | FTTH عالية الكثافة MPO/MTP إدارة كاسيت لوحة تصحيح الألياف البصرية نوع قابل للانزلاق | مركز البيانات | نوع الألياف: | سم (G652، G655، G657)؛ مم (OM1-OM5) |
|---|---|---|---|
| قطر الكابل: | 0.9/0.6 | موصل: | ذكر (إبرة الدبوس)، أنثى MPO/MTP، LC |
| فقدان الإدراج (DB): | ≤ 0.3 | فقدان العودة (DB): | UPC SM: 40 ديسيبل APC SM: 60 ديسيبل |
| التكرار: | ≥ 0.1 ديسيبل | متانة: | ≤ 0.2db |
| قابلية التبادل: | ≤ 0.2db | نصف قطر الانحناء (ديناميكي/ثابت): | دقيقة 40 ملم |
| اسم المنتج: | رفوف، وحدة كاسيت | مادة: | الألومنيوم |
| صممت وفقاً: | إدارة المواد المستخدمة في المواد المستخدمة في المواد المستخدمة | متوافق مع: | RoHS، الوصول/SVHC |
| إبراز: | FTTH MPO/MTP cassette patch panel,slidable fiber optic patch panel,high-density MPO cassette data center |
||
منتوج وصف
FTTH High-Density MPO/MTP Cassette Management Fiber Optic Patch Panel
Advanced slidable-type data center and network solution designed for high-density fiber optic connectivity and management.
Product Overview

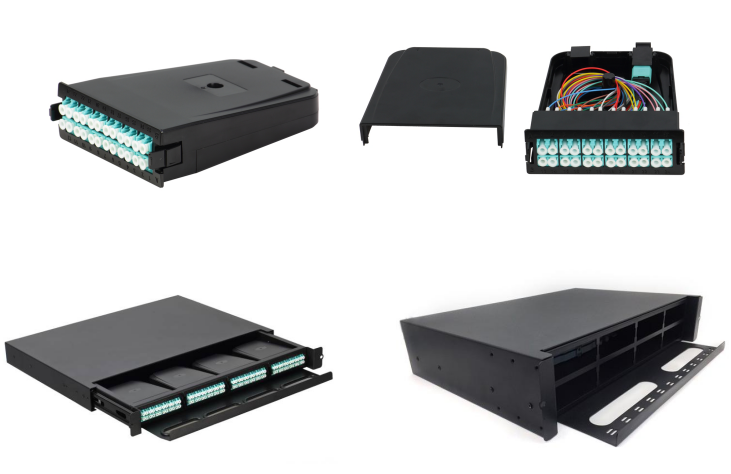

The Takfly series rack-mounted patch panel is engineered to manage and house easy-plug MTP/MPO to LC fiber cassette modules, facilitating connections for plug-and-play pre-terminated high-density MTP/MPO fiber cabling systems. This solution enhances network availability and is particularly suitable for SAN, LAN, and Data Center applications.
Each easy-plug MTP/MPO to LC cassette accommodates 12/24-fiber MTP/MPO based fiber assemblies and comes pre-loaded with LC adapters in various fiber modes to suit your specific requirements.
Applications
- Optical fiber communication dense wiring systems between buildings
- Wireless Access Applications (WAA)
- Local Area Networks (LAN)
- Cable Television Systems (CATV)
- Data center rooms in commercial buildings
- Telecommunication base stations
- Optical link interconnection in optical active equipment for LAN cabling
- Fiber To The Home (FTTH)
- Data center rooms in industrial areas
Key Features
- Designed for 19-inch rack-mount and cabinet installation with centralized cassette module management
- High-quality aluminum alloy construction with durable electrostatic coating surface
- 1U high-density capacity supporting 96 fibers for LC interface
- Male or Female MPO/MTP connectors with precise PIN and adapter connections
- Modular design featuring plug-in locking structure and clear line sequence identification
- Compact, lightweight, impact-resistant, flame-retardant, and corrosion-resistant construction
- Excellent sealing performance for dust protection and advanced network equipment integration
- Accommodates up to 4 Small/MTP modules in 1U space
- Multiple adapter options available for various configurations
- Compatible with loose tube, distribution, and pre-terminated cables
- ROHS, REACH SvHC, and UL rated for quality assurance
- Fits standard 19" rack systems
Technical Specifications
| U Size | 1U (44.2mm) |
|---|---|
| Number of Ports | 12 (Max 144 core) |
| Width | 482.6mm |
| Depth | 464.9mm |
| Net Weight | 6.8kg |
| Packaged Weight | 8.7kg |
| Packaged Size | 57*56*20cm |
| Material | 1.2mm Cold-rolled steel |
| Material Coating | Powder coating |
| Color | Black |
| Designed in Accordance With | TIA/EIA 568.C, ISO/IEC 11801, EN50173, IEC60304, IEC61754, EN297-1 |
| Compliant to | RoHS, Reach/SVHC |
| U Size | 1U (44mm) | 2U (88mm) |
|---|---|---|
| Number of Ports | 4 (Max 96core) | 8 (Max 192core) |
| Width | 482.6mm | |
| Depth | 363.2mm | |
| Net Weight | 3kgs | 6kg |
| Packaged Weight | 3.3Kgs | 6.5kg |
| Material | 1.2mm~1.5mm Cold-rolled steel | |
| Material Coating | Powder coating | |
| Color | Black | |
| Designed in Accordance With | TIA/EIA 568.C, ISO/IEC 11801, EN50173, IEC60304, IEC61754, EN297-1 | |
| Compliant to | RoHS, Reach/SVHC | |
Panel Structure
Product Images
Why Choose TAKFLY?
- 26+ years of manufacturing experience in fiber optic products
- 450+ assembly workers with 3+ years of experience
- 10+ R&D Engineers dedicated to innovation
- 16 sets of Germany imported injection machines and 16 production lines
- Comprehensive testing equipment including OTDR, 3D, VFL, IL&RL test instruments, tension strength testers
- OEM branding accepted
- Regular exhibition participation worldwide
Quality Control
- Spot check raw material incoming inspection before production
- Full inspection after every individual process completion
- Full inspection of production half-done stages
- Full inspection of finished products before packing
- Spot check before shipping
Delivery Information
- Samples: 1-3 working days
- Mass production orders: 3-7 working days
- Packaging: Plastic bag, carton and pallet options available
Frequently Asked Questions
Q1: How can I get your catalogue and price list?
A1: Please provide your email or contact information through our website to receive our catalogue and price list.
Q2: Can I negotiate the prices?
A2: Yes, we may consider discounts for multiple container loads of mixed goods.
Q3: How much will the shipping charges be?
A3: Shipping charges depend on shipment size and shipping method. We will provide charges upon request.
Q4: Can I visit you?
A4: Sure, our factory is in Shenzhen, China. Please contact us to schedule an appointment.
Q5: What if there is a quality problem when we receive the goods?
A5: If quality issues arise upon unpacking, please take photos for our reference. Our QC department will investigate and provide the best solutions, and we'll implement improvements for future production.
Q6: What are your packing terms?
A6: Generally, we pack goods in blister boxes and cartons, but we can also accommodate custom packaging requests.
Q7: What are your payment terms?
A7: T/T 30% deposit, 70% balance before delivery. We provide photos of products and packaging before final payment.
Q8: What are your delivery terms?
A8: EXW, FOB, CFR, CIF, DDU
Q9: How about your delivery time?
A9: Generally, 5-7 working days after receiving advance payment. Specific delivery time depends on items and order quantity.
Q10: Can you produce according to samples?
A10: Yes, we can produce based on your samples or technical drawings.
If you're interested in our products or have any questions, feel free to contact us at any time!
