1×8 MPO/MTP to SC/APC PLC Splitter – Single-mode, Low Insertion Loss, High-Density Optical Distribution for Data Centers
تفاصيل المنتج:
| مكان المنشأ: | شنتشن وتشونغشان الصين |
| اسم العلامة التجارية: | DF/OEM/Nuetral |
| إصدار الشهادات: | CE/ROHS/CPR EN50575/ISO9001 /ISO14001 |
| رقم الموديل: | 1 × 8 مبو/MTP-SC/APC+MPO/MTP SM PLC |
شروط الدفع والشحن:
| الحد الأدنى لكمية: | 1 |
|---|---|
| الأسعار: | Can be negotiation |
| تفاصيل التغليف: | كرتون |
| وقت التسليم: | 5-9 الأعمال تعتمد على الكمية |
| شروط الدفع: | تي / تي، باي بال |
| القدرة على العرض: | 2500 قطعة/أسبوع |
|
معلومات تفصيلية |
|||
| إبراز: | 1×8 MPO to SC/APC PLC splitter,single-mode MPO splitter low insertion loss,high-density MTP splitter for data centers |
||
|---|---|---|---|
منتوج وصف

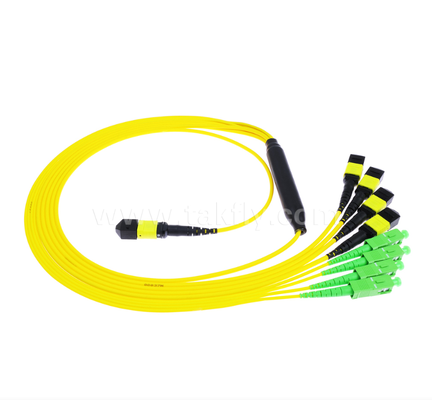

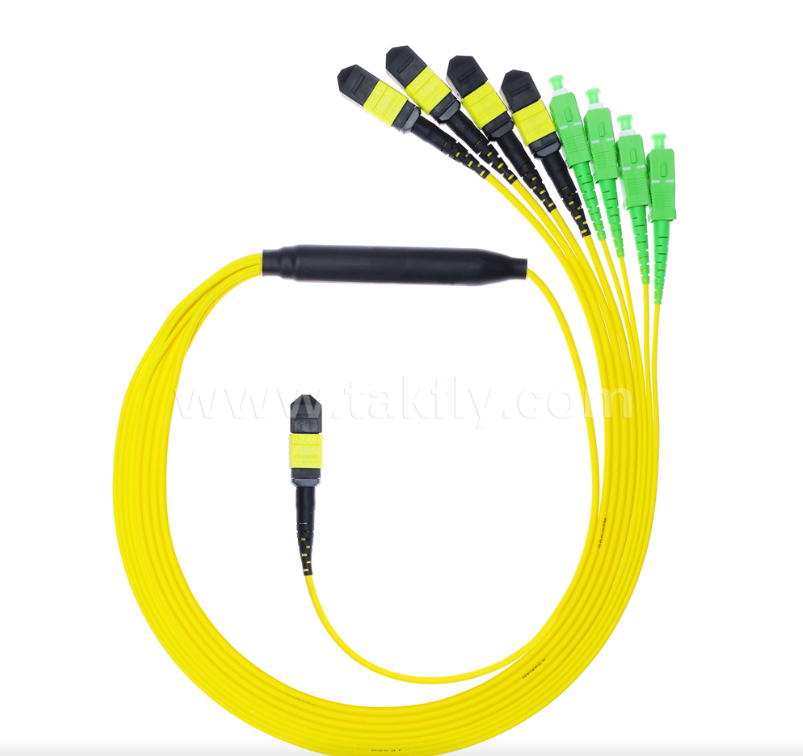

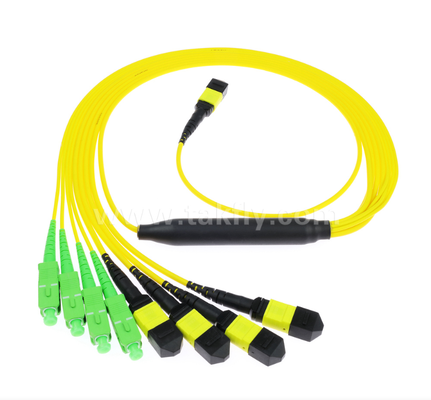

1×8 MPO/MTP to SC/APC PLC Splitter
Single-mode, Low Insertion Loss, High-Density Optical Distribution for Data Centers
Product Overview
The 1×8 PLC splitter is a high-performance hybrid optical distribution device that integrates PLC splitting technology with MPO/MTP high-density connectivity. Featuring an MPO/MTP adapter input and 8 individual SC/APC output connectors, this splitter enables seamless conversion from high-density trunk cabling to standard SC/APC equipment interfaces.
Manufactured using advanced Planar Lightwave Circuit (PLC) technology, the splitter utilizes a high-precision silica-based optical waveguide chip to distribute input optical power evenly across 8 output channels, providing excellent splitting uniformity, ultra-low polarization-dependent loss (PDL), and outstanding thermal stability.

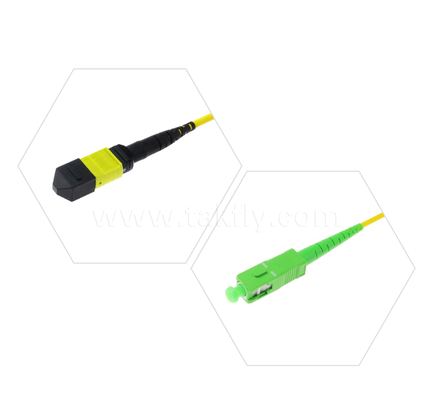

Selected High Quality Ferrule
Available with high quality ferrule, professional polishing technology, and precise matching for optical endface to achieve stable transmission and efficient connection.
High Quality, 100% Testing
TAKFLY MPO/MTP-PLC Splitter are fully 100% tested, compliant with product standards, and designed to meet user demands.
Key Features
- 1×8 symmetrical split - excellent channel uniformity (≤0.8dB)
- MPO/MTP adapter input - high-density plug-and-play connectivity
- 8×SC/APC outputs - 8° APC polish, return loss ≥60dB
- Telcordia GR-1209/1221 compliant
- -40°C to +85°C operating temperature range
- 100% tested with individual test reports included
- Customizable: package type, output connector, cable length
Applications
- Hyperscale data centers (40G/100G/400G architectures)
- FTTH/FTTx & PON/GPON/XGS-PON networks
- 5G front-haul / C-RAN architecture
- High-density patching areas
- Metro & access networks
- CATV & video distribution
- Test & measurement equipment
Why Choose TAKFLY?
26 Years of Manufacturing Experience in Fiber Optic Products
Company Capabilities
- Experienced Assembly Team: More than 80 assembly workers with 6+ years of experience
- Strong R&D Capability: More than 10 R&D engineers
- Advanced Production Equipment: 16 sets of German imported injection machines and 16 production lines
- Comprehensive Testing Facilities: More than 30 sets of testing instruments including OTDR, ILD, VFL, RL, IL, tension strength testers, crush resistance testers, power meter testers, and light checkers
- OEM Branding Accepted: Custom logo/branding available
Quality Control Process
- Incoming inspection: Spot check of raw materials before production
- In-process inspection: Full inspection at every individual process completion
- Pre-packaging inspection: Full inspection of finished products before packing
- Pre-shipping inspection: Spot check before shipping
Industry Participation
Source Electronics Exhibition, OFC, FOCC, ConnecAsia, NFTCOM, AFRICACOM, SMART ICT, Contelem, China.
Delivery Information
| Service Type | Timeline |
|---|---|
| Samples | 1-3 working days |
| Mass production orders | 3-7 working days |
| Packaging | Plastic bag, carton, and pallet options available according to your requirements |
