MT to Mini MT Patch Cord – MT-MiniMT Hybrid Fiber Jumper, Low Insertion Loss (≤0.35dB), 4/8/12/24 Core Options, for High-Speed Optical Transceivers (400G/800G) & Compact Module Internal Connections
تفاصيل المنتج:
| مكان المنشأ: | شنتشن وتشونغشان، الصين |
| اسم العلامة التجارية: | DF/OEM/Nuetral |
| إصدار الشهادات: | CE/ROHS/CPR EN50575/ISO9001 /ISO14001 |
| رقم الموديل: | MT-ميني MT |
شروط الدفع والشحن:
| الحد الأدنى لكمية: | 1 |
|---|---|
| الأسعار: | can be negotiated |
| تفاصيل التغليف: | كرتون |
| وقت التسليم: | 5-9 أيام عمل تعتمد على الكمية |
| شروط الدفع: | / تي تي، ويسترن يونيون، باي بال |
| القدرة على العرض: | 1000 قطعة/يوم |
|
معلومات تفصيلية |
|||
| إبراز: | MT-MiniMT hybrid fiber jumper,low insertion loss fiber patch cord,MTP patch cord for optical transceivers |
||
|---|---|---|---|
منتوج وصف

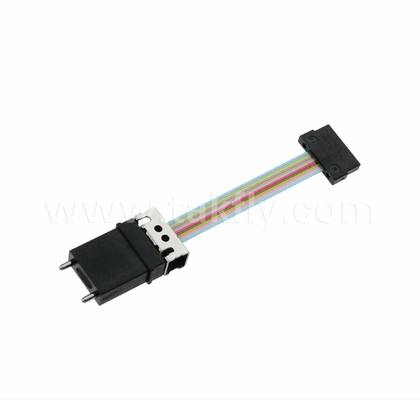

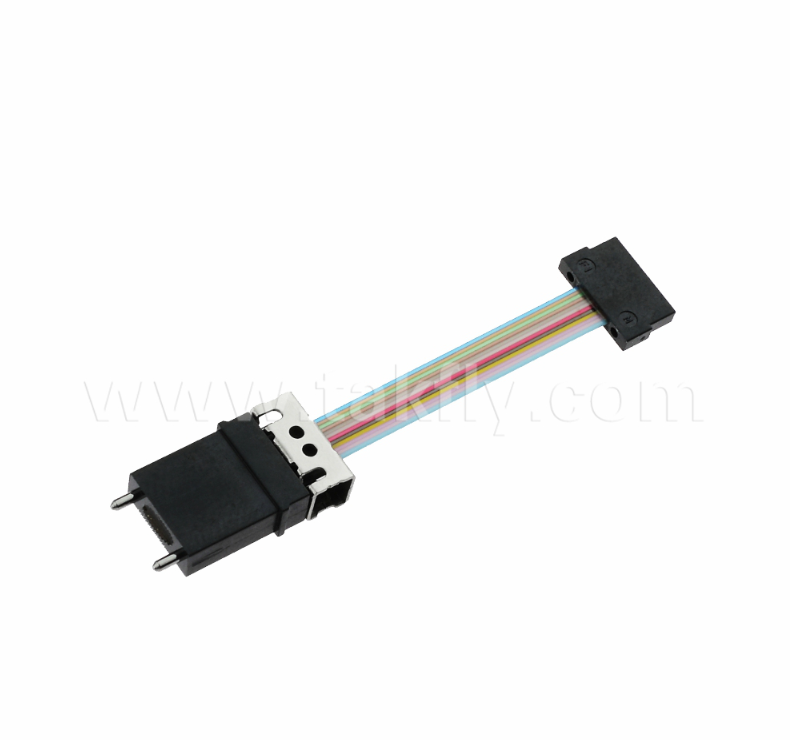

MT to Mini MT Patch Cord – Hybrid Fiber Jumper
The MT-MiniMT Hybrid Fiber Jumper is designed for internal cabling in high-speed optical transceivers (400G/800G). This assembly features a standard MT ferrule on one end and a compact Mini MT ferrule on the other, specifically engineered for space-constrained QSFP, QSFP-DD, and OSFP module packaging.
Key Specifications
- Low Insertion Loss: ≤0.35dB
- Available in 4/8/12/24 Core Options
- Standard MT to Mini MT ferrule configuration
- Compatible with 400G/800G Optical Transceivers
Compact Design Advantage
The Mini MT ferrule measures less than half the size of a standard MT ferrule, enabling optimal fit within ultra-compact internal spaces of high-speed transceivers where space optimization is critical.
Application & Operation
In high-speed optical transceivers, the Mini MT end directly couples to the lens array aligned with laser diodes, while the standard MT end terminates at the module's external optical interface. This integrated approach simplifies module assembly by providing a complete internal optical pathway in a single patch cord.
TAKFLY Manufacturing Excellence
Company Capabilities
- 26 Years of Fiber Optic Manufacturing Experience
- Experienced Assembly Team: 80+ workers with 6+ years experience
- Strong R&D Capability: 10+ dedicated engineers
- Advanced Production Equipment: 16 German injection machines, 16 production lines
- Comprehensive Testing Facilities: 30+ testing instruments including OTDR, ILD, VFL, RL, IL, and mechanical testers
- OEM Branding Accepted - Custom logo/branding available
Quality Control Process
- Incoming Inspection: Raw material spot checking
- In-process Inspection: Full inspection at each production stage
- Pre-packaging Inspection: Comprehensive finished product checking
- Pre-shipping Inspection: Final spot check before dispatch
Industry Participation
Active participation in major industry events including OFC, FOCC, ConnecAsia, NFTCOM, AFRICACOM, SMART ICT, Contelem, and Source Electronics Exhibition.
Delivery Information
| Service Type | Timeline |
|---|---|
| Samples | 1-3 working days |
| Mass Production Orders | 3-7 working days |
| Packaging Options | Plastic bag, carton, and pallet options available |
