Indoor MINI Optical Cable 2000M LSZH/PVC/PU
تفاصيل المنتج:
| مكان المنشأ: | الصين ، شنتشن |
| اسم العلامة التجارية: | DF/OEM/Nuetral |
| إصدار الشهادات: | CE/ROHS/REACH/ISO9001/ISO14001 |
| رقم الموديل: | تك-PC-48F-SC-OS2-50M |
شروط الدفع والشحن:
| الحد الأدنى لكمية: | قابل للتفاوض |
|---|---|
| الأسعار: | negotiable denpend on QTY |
| تفاصيل التغليف: | صندوق نفطة + كرتون |
| وقت التسليم: | 5-9 أيام عمل تعتمد على الكمية |
| شروط الدفع: | ويسترن يونيون، / تي تي، موني جرام / بايبال |
| القدرة على العرض: | 1000pcs/يوم |
|
معلومات تفصيلية |
|||
| اسم المنتج: | كابل بصري صغير داخلي | القطر الخارجي (مم): | 3.0-17.5 ملم |
|---|---|---|---|
| عدد الألياف: | 2-24 أو 26-144 | تعزيز النواة: | غزل أراميد |
| مادة: | FRP | مادة سترة: | LSZH/PVC |
| لون: | أصفر للكابل أحادي الوضع، برتقالي للكابل متعدد الأوضاع؛ أو الألوان الأخرى المتاحة عند الطلب | الطول الموجي: | 1310 نانومتر ، 1550 نانومتر |
| القطر (± 1 ميكرومتر): | 125μm | قطر الطلاء (±5 ميكرومتر): | 250μm |
| درجة حرارة التشغيل: | -20 ℃ ~ 70 ℃ | طول: | 2000 م أو حسب الطلب |
| العلامة التجارية الألياف: | كورنينج، واي أو إف سي، أو إف إس، دراكا | ||
| إبراز: | Indoor MINI Optical Cable 2000M,LSZH Fiber Optic Cable,PVC MINI Optical Cable,LSZH Fiber Optic Cable,PVC MINI Optical Cable |
||
منتوج وصف
Indoor MINI Optical Cable 2000M LSZH/PVC/PU
2-24 core mini-optic cables use Φ250μm color fiber as optical communication medium. Its color fibers are wrapped in a layer of aramid yarn as a force strengthening unit, which is coated to make a layer of polyvinyl chloride (PVC) or low-smoke halogen-free material (LSZH, low-smoke, halogen-free, flame retardant) jacket.
26-144 core mini-optic cables are used as a subunit (250μm color fiber, aramid yarn is a reinforcement element, 3.0mm inner sheath), a fiber-reinforced plastic (FRP) positioned at the center of the core as a non-metal strengthening, the subunit is surround the FRP around, the subunit is a PVC or LSZH material sheath, and the last layer of polyvinyl chloride (PVC) or low-smoke halogen-free material (LSZH, low-smoke, halogen-free, flame retardant) jacket.
Applications
- Optical fiber active connection jumper or tail fiber
- Routing and patching for data center and indoor communication network location
- Interconnection of instruments and communication equipment
Features
- Coated fiber is easy to peel off
- Aramid yarn reinforced element makes the optical cable have excellent tensile resistance
- Multi-core number and small outer diameter, non-metal center strengthening structure
- Good performance of flame-retardant, low induced attenuation within the operating temperature range
- Meet various requirements of market and clients
Optical Parameter and Properties
| Optical fiber type | Test wavelength | Decay | Full injection bandwidth (MHZ.km) | Effective modal bandwidth (MHZ.km) | Minimum bending radius(mm) |
|---|---|---|---|---|---|
| G652D | 1310/1550nm | 0.36/0.22 | 0.5/0.4 | ... | 16 |
| G657A1 | 1310/1550nm | 0.36/0.22 | 0.5/0.4 | ... | 10 |
| G657A2 | 1310/1550nm | 0.36/0.22 | 0.5/0.4 | ... | 7.5 |
| 62.5/125 | 850/1300nm | 3.0/1.0 | 3.5/1.5 | ≥200/500 | 30 |
| 50/125 | 850/1300nm | 3.0/1.0 | 3.5/1.5 | ≥500/500 | 30 |
| OM3 | 850/1300nm | 3.0/1.0 | 3.5/1.5 | ≥1500/500 | 7.5 |
| OM4 | 850/1300nm | 3.0/1.0 | 3.5/1.5 | ≥3500/500 | 7.5 |
| OM5 | 850/953nm/1300nm | 3.0/.../1.0 | 3.5/.../1.5 | ≥3500/1850/500 | 7.5 |

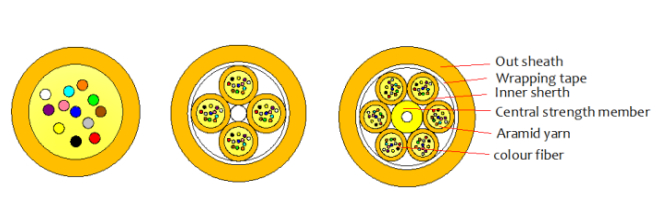

Product Structure
| Fiber count | 2-24 | 26-144 |
|---|---|---|
| Optical fiber | Diameter(±1µm): 125µm Coating diameter(±5µm): 250µm Color: 1. Blue 2. Orange 3. Green 4. Brown 5. Grey 6. White 7. Red 8. Black 9. Yellow 10. Violet 11. Pink 12. Aqua |
|
| Subunit | Diameter(±0.15mm): 3.0mm Core reinforce: Aramid yarn Sheath material: PVC/LSZH Color: Yellow for single mode cable, Orange for multi mode cable; Or other colors available upon request |
|
| Supplementar | Filler | |
| Strength member | Center reinforcement: FRP | |
| Outer sheath | Sheath material: PVC/LSZH Color: Yellow for single mode cable, Orange for multi mode cable; Or other colors available upon request |
| Cable | Fiber count | Subunit count (12pc/set) | Outside diameter (mm) | Cable weight (kg/km) | Max tensile force(N) | Crush resistance (N/100mm) | Min bend radius(D) | Running temperature |
|---|---|---|---|---|---|---|---|---|
| 2-24 | / | 3.0 | 8 | 80/150 | 1000 | 20/10 | -20 ℃ ~+70 ℃ | |
| 26-48 | 4 | 9.0 | 80 | 200/500 | 1000 | 20/10 | -20 ℃ ~+70 ℃ | |
| 50-72 | 6 | 11.2 | 130 | 300/1000 | 1000 | 20/10 | -20 ℃ ~+70 ℃ | |
| 74-96 | 8 | 13.5 | 180 | 300/1000 | 1000 | 20/10 | -20 ℃ ~+70 ℃ | |
| 98-144 | 12 | 17.5 | 280 | 300/1000 | 1000 | 20/10 | -20 ℃ ~+70 ℃ |
Product Picture
Why choose TAKFLY?
Professional manufacturer:
- With more than 25 years manufacturing experience in Fiber optic products
- More than 450 assembly workers with 3 years experienced
- More than 10 R&D Engineers
- 16 Sets Germany imported Injection Machine and 16 Production Lines
- More than 30 sets of Testing Machines: OTDR,3D,VFL,IL&RL test instrument; tension strenth tester, Crush Resistance tester, Power meter tester, light checker, etc.
- OEM Brand is acceptable
- Exhibition: OFC, ECOC, CommunicAsia, NETCOM, AFRICACOM, SVIAZ ICT, CommunicIndonesia, Global Soure Electronic Exhibition, etc.
Quality Control:
- Spot check the raw material incoming inspection before production
- Fully check after every individual process finished
- Fully check production half done
- Fully check the finished products before packing
- Spot check before shipping
Delivery:
- Samples: 1-3 working days
- Mass Production Order: 3-7 working days
- Packaging: Plastic Bag, Carton and Pallet are available according to your request
If you're interested in our products or have any doubt, feel free to contact me at any time!
