معلومات تفصيلية |
|||
| بنية الاتصال: | FC-LC | شكل المواد: | سلك مستدير |
|---|---|---|---|
| السماح بالضغط الجانبي: | 100 (N/100mm) | سمحت قوة الشد: | <100n |
| جوهر: | قلب واحد | مادة غمد: | LSZH |
| نوع الألياف: | G652D ، G655 ، G657 | تلميع: | الكمبيوتر الشخصي ، UPC ، APC |
| الرقم الأساسي: | سيمبلكس، دوبلكس، قرد | درجة حرارة التشغيل: | -40C ~+80C |
| طول الكابل: | 1 م، 3 م، 5 م أو حسب الطلب | وضع الألياف: | وضع واحد أو متعدد الأوضاع |
| قطر الكابل: | 0.9mm ، 2.0mm ، 3.0mm | تشغيل الطول الموجي: | 1310/1550nm |
| فقدان الإدراج: | ≤ 0.3 ديسيبل | ||
| إبراز: | RoHS Compliant Fiber Optic Patchcord,LSZH Sheath Fiber Optic Patch Cable,Single Mode LC-FC Fiber Optic Jumper,LSZH Sheath Fiber Optic Patch Cable,Single Mode LC-FC Fiber Optic Jumper |
||
منتوج وصف

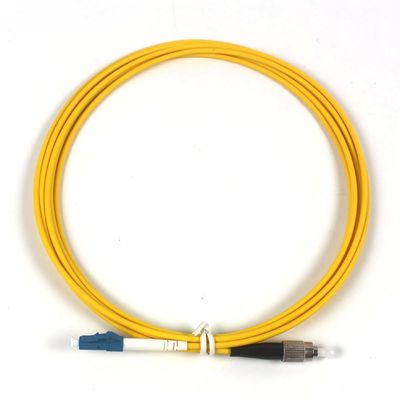

RoHS Compliant SM Simplex LSZH LC-FC Fiber Optic Patchcord
Fiber Optic Patch Cords are designed to interconnect or cross connect fiber networks within structured cabling systems. Typical fiber connector interfaces are SC, ST, FC, MU, MTRJ, E2000 and LC in either multimode or single-mode applications.
- All connectors have precision pre-radiused zirconia ferrules
- ST and FC connectors have metal bodies
- Corning, YOFC, OFS fiber is standard
- Standard and custom configurations available
- Duplex clips included with duplex configurations
Key Features
- Comply with IEC and YD-T826/1996, NTT, YD/T826, YD/T895, YD/T896, RoHS Standard
- Connector type standard: IEC61574 series
- Low Insertion Loss: IEC 61300-3-4, IL≤0.20dB
- High Return Loss: IEC61300-3-6; RL≥60dB
- Flammability: IEC60332-1
- Excellent repeat plug feature and interchangeability
- Ceramic Ferrule with high-density docking, concentricity ≤0.5
- Available with general PVC or LSZH cable
Applications
- Telecommunications
- CATV, LAN, MAN, WAN, Test & Measurement
- Medical
Technical Specifications
| Parameter | Specification |
|---|---|
| End face type | PC, UPC and APC |
| Fiber type | SM(G652,G655,G657); MM(OM1-OM5) |
| Cable Diameter | 2.0, 3.0 or customized (Simplex/duplex) |
| Insertion loss | ≤ 0.3 dB |
| Return loss | UPC SM≥50dB, APC SM≥60 dB, PC MM≥35 dB |
| Repeatability | ≤ 0.1 |
| Durability | ≤ 0.2dB |
| Interchangeability | ≤ 0.2dB |
| Tensile strength | >70N |
| Operating Temperature | -20ºC~70ºC |
| Storage Temperature | -40ºC~80ºC |
| Outer Sheath Material | PVC, LSZH, PU |
| Bending radius (Static/Dynamic) | 10D/20D |
| Length | Customized |

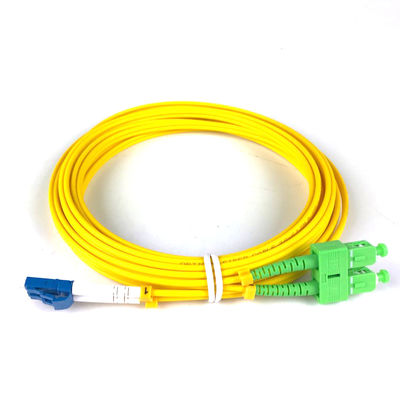

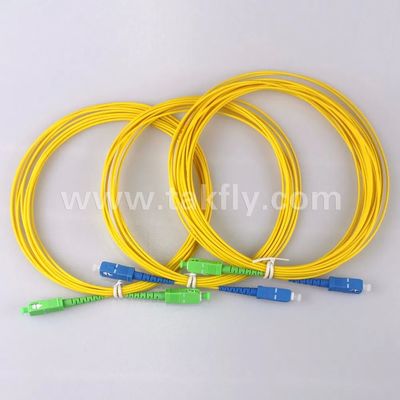

Product Images
Why Choose TAKFLY
Professional Manufacturer Advantages
- 18+ years manufacturing experience in Fiber optic products - one stop purchasing
- 450+ assembly workers with 3+ years experience
- 26+ R&D Engineers
- 16 Sets Germany imported Injection Machines and 10+ Cable Production Lines
- 30+ sets of Testing Machines: OTDR, 3D, VFL, IL&RL test instruments, tension strength tester, crush resistance tester, power meter tester, light checker, etc.
- OEM Brand accepted
- Exhibitions: OFC, ECOC, CommunicAsia, NETCOM, AFRICACOM, SVIAZ ICT, CommunicIndonesia, Global Source Electronic Exhibition, etc.
- 24/7 after-sales service available
Quality Control Process
- Spot check raw material incoming inspection before production
- Full check after every individual process
- Full check production half done
- Full check finished products before packing
- Spot check before shipping
Delivery & Shipping
- Samples: 1-3 working days
- Mass Production: 3-7 working days
- Packaging: Plastic Bag, Carton and Pallet available
- Shipping Methods: DHL, UPS, FEDEX, TNT, EMS (3-5 days), Sea or Air freight
Payment Terms
T/T, Paypal, Western Union and L/C accepted. Price negotiable for large quantities.
With over 5 years of experience in this field, we provide excellent service and professional answers. Contact us today for inquiries or product questions.
