معلومات تفصيلية |
|||
| بنية الاتصال: | SC-SC | شكل المواد: | سلك مستدير |
|---|---|---|---|
| السماح بالضغط الجانبي: | 100 (N/100mm) | سمحت قوة الشد: | 100n <1000n |
| جوهر: | Simplex Quard Quard | مادة غمد: | PVC ، LSZH |
| وضع الألياف: | وضع واحد | قطر الكابل: | 0.9mm ، 2.0mm ، 3.0mm |
| تشغيل الطول الموجي: | 1310/1550nm | طول الكابل: | 1M ، 3M ، 5M أو مخصص |
| درجة حرارة التشغيل: | -40C ~+80C | فقدان الإدراج: | ≤0.20db |
| قابلية التغيير: | ≤ 0.20dB | نصف قطر انحناء: | 10 ≤ r ≥25 نانومتر |
| أدخل وسحب التردد: | > 1000 مرة | ||
| إبراز: | SC-SC single mode fiber optic cable,duplex fiber optic patch cable 0.9mm,single mode fiber optic cable 3.0mm,duplex fiber optic patch cable 0.9mm,single mode fiber optic cable 3.0mm |
||
منتوج وصف

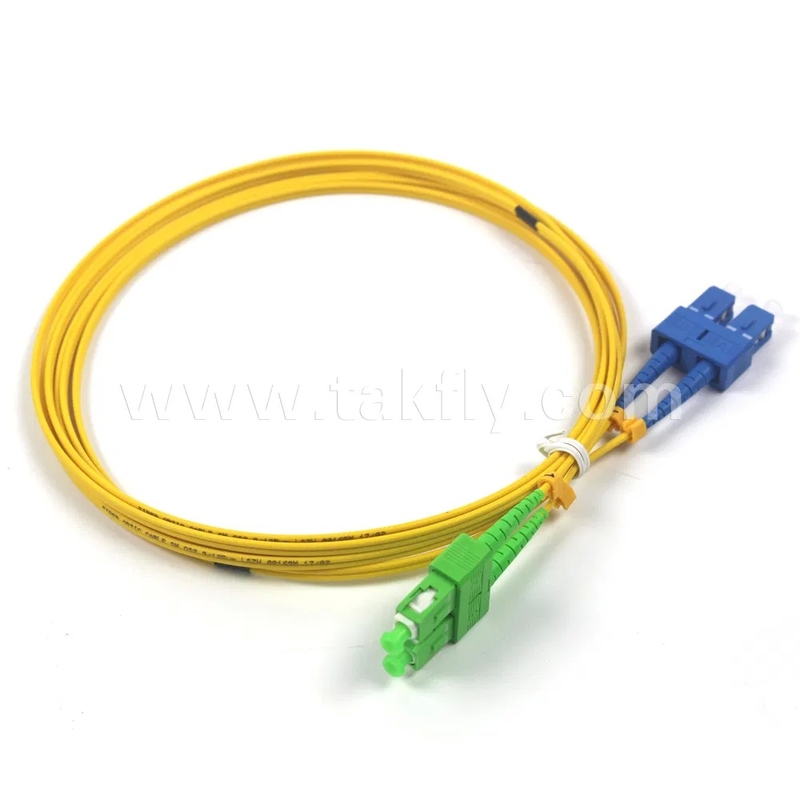

Sc/APC-Sc/Upc Single Mode Duplex Fiber Optic Patch Cable
The Sc/APC-Sc/Upc Single Mode Duplex Fiber Optic Patch Cable is a high-performance patch cord designed for connecting devices in fiber optic networks. These ISO/IEC 11801 compliant cables feature SC/APC connectors for reliable signal transmission.
Key Features
- Low insertion loss and high return loss
- Excellent exchangeability between connectors
- Supports 10 Gigabit data transmission rates
- Available with multiple connector types: FC, LC, SC, MU, ST, MTRJ, E2000, MPO
- Polishing options: PC, UPC and APC
- Compliant with IEC standards
Applications
- Telecommunication networks
- Fiber optic communication systems
- CATV, LAN, MAN, WAN networks
- Test & Measurement equipment
- Optical access networks
Technical Specifications
| Parameter | Unit | Standard & Requirement |
|---|---|---|
| Insertion loss | dB | ≤0.20 |
| Changeability | dB | ≤ 0.20dB |
| Radius of curvature | nm | 10 ≤ r ≥25 |
| Curvature eccentricity | um | <50 |
| Fiber core undercut | nm | <50 |
| Insertion loss change | dB | < 0.1 |
| Return loss change | dB | < 5 |
| Insert & pull out (Max.) | kg | 2 |
| Insert and pull frequency | Time | > 1000 |
| Operating temperature | °C | -40 ~ +85 |

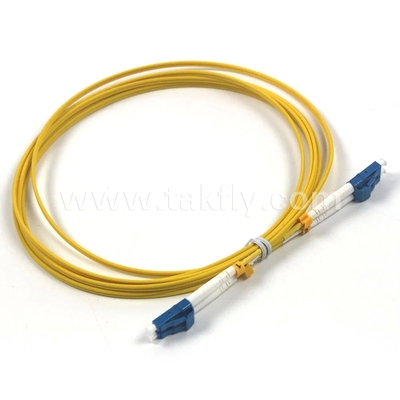

Product Images
