FTTH Field-Assembled Mechanical Fiber Optic Connector TK-FC-SCA-B001 For Telecommunication System
تفاصيل المنتج:
| مكان المنشأ: | الصين ، شنتشن |
| اسم العلامة التجارية: | DF/OEM/Nuetral |
| إصدار الشهادات: | CE/ROHS/REACH/ISO9001/ISO14001 |
| رقم الموديل: | تك-فك-SCA-B001 |
شروط الدفع والشحن:
| الحد الأدنى لكمية: | قابل للتفاوض |
|---|---|
| الأسعار: | negotiable denpend on QTY |
| تفاصيل التغليف: | صندوق نفطة + كرتون |
| وقت التسليم: | 5-9 أيام عمل تعتمد على الكمية |
| شروط الدفع: | Western Union ، T/T ، Moneygram/PayPal |
| القدرة على العرض: | 1000 قطعة/يوم |
|
معلومات تفصيلية |
|||
| اسم المنتج: | موصل الألياف البصرية الميكانيكية المجمعة ميدانيًا FTTH TK-FC-SCA-B001 لنظام الاتصالات السلكية واللاس | ينطبق على: | إسقاط الكابل. كابل داخلي |
|---|---|---|---|
| وضع الألياف: | وضع واحد أو وضع متعدد | نوع الألياف: | جي.652د، جي.657أ1 |
| كابل الألياف: | كابل ضوئي معزول بالمطاط 3.0*2.0 ملم ∅3.0/∅2.0 /∅0.9 كابل ضوئي معزول | فقدان الإدراج: | ≤0.35db |
| خسارة العودة: | UPC≥45dB، APC≥55dB | قوة الشد: | ≥40 ن |
| درجة حرارة التشغيل: | -40 درجة مئوية ~ +85 درجة مئوية | ماركة فايبر: | كورنينج، واي أو إف سي، أو إف إس، دراكا |
| إبراز: | FTTH mechanical fiber optic connector,field-assembled fiber optic connector,fiber optic connector for telecommunication |
||
منتوج وصف
FTTH Field-Assembled Mechanical Fiber Optic Connector TK-FC-SCA-B001
TAKFLY Mechanical Field-Mountable Fiber Optic Connector (FMC) simplifies fiber connections without requiring fusion splicing equipment. This quick-assembly connector needs only standard fiber preparation tools: cable stripper and fiber cleaver.
Applications
- LAN environment desk connections
- Optical access network infrastructure
- Fiber to the Subscriber (FTTX) applications
- Patch panels and distribution frames
- Direct equipment termination
- FTTx network deployments
- Optical equipment room wiring reconstruction
- Data Room Transformation
Key Features
- Factory-installed fiber stub for immediate use
- No epoxy or polishing required
- Quick and easy field fiber termination
- Eliminates cable excess length and pigtail splice storage
- Cost-effective installation solution
- Low insertion loss and back reflection loss
- Extremely easy operation process
- Short operation time - approximately 15 seconds
Optical Characteristics
| Category | Specification |
|---|---|
| Applicable for | Drop cable, Indoor cable |
| Fiber mode | Single mode or Multi mode |
| Fiber type | G.652D, G.657A1 |
| Fiber cable | 3.0*2.0mm rubber-insulated optical cable ∅3.0/∅2.0 /∅0.9 insulated optical cable |
| Fiber diameter | 0.125mm |
| Force holds 2 x 3mm cable type | ≥ 40 N, loss ≤ 0.4 dB (sample cable length: 22 - 28 cm, test time: 2 minutes) |
| Fiber lock | Lock holds fiber reliability, bears hang force ≥ 3.8 N, attenuation changes ≤ 0.2 dB |
| Working wavelength | 1310 nm, 1490 nm, 1550 nm |
| Operation time | About 50 (no fiber cut) |
| Insertion Loss | ≤0.35 dB |
| Insertion Loss Typical value | 0.3 dB |
| Return Loss | UPC≥45 dB, APC≥55 dB |
| Fastening strength of naked fiber | ≥3 N |
| Tensile strength | ≥40 N |
| Reusable | ≥10 times |
| Operating Temperature | -40℃ to +85℃ |
| On-line tensile strength (20N) | ΔIL≤0.3 dB |
| Mechanical durability (500 times) | ΔIL≤0.3 dB |
| Drop-off test (4m height, 3 times) | ΔIL≤0.3 dB |
Environmental Performance
| Condition | IL Variation | RL Variation | Appearance |
|---|---|---|---|
| High TEMP (110℃, 200H) | ≤0.5 | ≤5 | No mechanical damage |
| Low TEMP (-40℃, 200H) | ≤0.5 | ≤5 | No mechanical damage |
| TEMP Cycling (-40～85℃, 100 cycles) | ≤0.5 | ≤5 | No mechanical damage |
| HAST (110℃, 90%RH, 200H) | ≤0.5 | ≤5 | No mechanical damage |
| Immersion (25℃, 200H) | ≤0.5 | ≤5 | No mechanical damage |
| Salt Mist (5% Nacl, 35℃, 200H) | ≤0.5 | ≤5 | No mechanical damage |
Mechanical Performance
| Condition | IL Variation | RL Variation | Appearance |
|---|---|---|---|
| Impact (4m height, 3 cycles) | ≤0.5 | ≤5 | No mechanical damage |
| Vibration (10-50Hz, 30min each axial) | ≤0.5 | ≤5 | No mechanical damage |
| Torsional (15N, 200 times) | ≤0.5 | ≤5 | No mechanical damage |
| Tensile (50N, 1 minute) | ≤0.5 | ≤5 | No mechanical damage |
Packaging Information
| Size (CM) | 14.6*7.6*1.6 |
|---|---|
| QTY (PCS/Box) | 10 |
| N.W (KG/PCS) | 0.0031 |
| N.W (KG/Box) | 0.0465 |
| G.W (KG/Box) | 0.031 |
Gift Packing
| Size (CM) | 15.8*14.5*9.5 |
|---|---|
| QTY (Blister Box/Gift Box) | 10 |
| N.W (KG/Box) | 0.55 |
| G.W (KG/Box) | 0.52 |
Outer Packing
| Size (CM) | 46*46*32.5 |
|---|---|
| QTY (Gift Box/Box) | 30 |
| QTY (Pcs/Box) | 3000 |
| N.W (KG/Box) | 15.5 |
| G.W (KG/Box) | 16.5 |

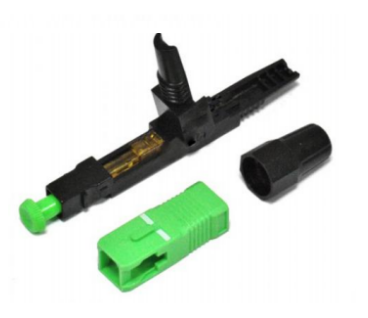

Product Image
Why Choose TAKFLY?
- 26+ years manufacturing experience in fiber optic products
- 450+ assembly workers with 3+ years experience
- 10+ R&D Engineers dedicated to innovation
- 16 Germany imported Injection Machines and 16 Production Lines
- 30+ testing machines: OTDR, 3D, VFL, IL&RL test instruments, tension strength testers, crush resistance testers, power meter testers, light checkers
- OEM branding accepted
- Global exhibition participation: OFC, ECOC, CommunicAsia, NETCOM, AFRICACOM, SVIAZ ICT, CommunicIndonesia, Global Source Electronic Exhibition
Quality Control
- Raw material incoming inspection before production
- Full inspection after every individual process
- Comprehensive half-done production checks
- Complete finished product inspection before packing
- Pre-shipping spot checks to ensure quality
Delivery Information
Samples: 1-3 working days
Mass Production Order: 3-7 working days
Packaging: Plastic Bag, Carton and Pallet available per request
Frequently Asked Questions
Q1: How can I get your catalogue and price list?
A1: Please provide your email or contact information through our website for catalogue and pricing.
Q2: Can I negotiate the prices?
A2: Yes, we consider discounts for multiple container loads of mixed goods.
Q3: How much will the shipping charges be?
A3: Shipping charges depend on shipment size and method. We provide quotes upon request.
Q4: Can I visit you?
A4: Yes, our factory is in Shenzhen, China. Please contact us to schedule an appointment.
Q5: What if there is quality problem when we get the goods?
A5: If quality issues arise, provide photos for our reference. Our QC department will investigate and provide solutions while implementing future quality improvements.
Q6: What is your terms of packing?
A6: Standard packing includes blister box and cartons. Customized packing available per customer requirements.
Q7: What is your terms of payment?
A7: T/T 30% deposit, 70% balance before delivery. We provide product and package photos before final payment.
Q8: What is your terms of delivery?
A8: EXW, FOB, CFR, CIF, DDU available.
Q9: How about your delivery time?
A9: Generally 5-7 working days after receiving advance payment. Specific timing depends on items and order quantity.
Q10: Can you produce according to the samples?
A10: Yes, we can produce based on your samples or technical drawings.
If you're interested in our products or have any questions, feel free to contact us at any time!
