TKS-1806-02K Fiber Optic Distribution Box For FTTx Communication Network Building From China
تفاصيل المنتج:
| مكان المنشأ: | الصين ، شنتشن |
| اسم العلامة التجارية: | DF/OEM/Nuetral |
| إصدار الشهادات: | CE/ROHS/REACH/ISO9001/ISO14001 |
| رقم الموديل: | تكس-1806-02ك |
شروط الدفع والشحن:
| الحد الأدنى لكمية: | قابل للتفاوض |
|---|---|
| الأسعار: | negotiable denpend on QTY |
| تفاصيل التغليف: | صندوق نفطة + كرتون |
| وقت التسليم: | 5-9 أيام عمل تعتمد على الكمية |
| شروط الدفع: | Western Union ، T/T ، Moneygram/PayPal |
| القدرة على العرض: | 1000 قطعة/يوم |
|
معلومات تفصيلية |
|||
| اسم المنتج: | صندوق توزيع الألياف الضوئية TKS-1806-02K لبناء شبكة اتصالات FTTx من الصين | الرطوبة النسبية: | -40 درجة مئوية ~ + 75 درجة مئوية |
|---|---|---|---|
| محول: | SC Duplex | الضغط الجوي: | 70 كيلو باسكال ~ 106 كيلو باسكال |
| العزل: | جهاز التأريض معزول بصندوق الإنهاء، IR ≥1000m Ω/500V (التيار المباشر) | تحمل الجهد: | يتجاوز جهد الصمود 3000 فولت/دقيقة، ولا يوجد أي عطل أو وميض كهربائي. U ≥3000V (التيار المباشر) |
| ماركة فايبر: | كورنينج، واي أو إف سي، أو إف إس، دراكا | البعد الخارجي (مم): | 124*79*26 |
| تخزين الألياف: | G.657/G652 | مادة: | ABS |
| إبراز: | FTTx fiber optic distribution box,fiber optic termination box for buildings,China fiber optic network box |
||
منتوج وصف

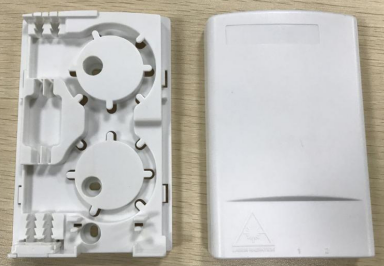

TKS-1806-02K Fiber Optic Distribution Box
Professional fiber termination box designed for FTTx communication network systems, serving as a critical connection point between feeder cables and drop cables.
Product Overview
This compact fiber terminal box is designed for use at the final fiber termination point in customer premises. It provides mechanical protection and managed fiber control in an attractive format suitable for indoor installations, accommodating various fiber termination techniques.
Applications
- Telecommunication subscriber loop systems
- Fiber to the Home (FTTH) installations
- LAN/WAN network infrastructure
Key Features
- Splicing to factory-terminated pigtails
- Effective cable protection and management
- Standard size with lightweight construction
- High-quality ABS material
- Wall-mountable design
- Attractive appearance for indoor use
- Easy operation and maintenance
- Cable-to-cable splicing capability
- Positive fiber management system
- Optimized shape and structure
Technical Specifications
| Parameter | Value | Remark |
|---|---|---|
| Model | TKS-1806-02K | |
| Outside Dimension (mm) | 124*79*26 | |
| Material | ABS | |
| Color | White | |
| Storage of fibers | G.657/G652 | |
| Splice capacity | 2f single fiber | |
| Splice Method | Fusion Splice | 40mm sleeve |
| Adapter | SC Duplex | Adapter type and count |
| Input cable (mm) | Max 5.0 | From side or bottom |
Why Choose TAKFLY?
Manufacturing Excellence
- 26+ years of specialized fiber optic manufacturing experience
- 450+ skilled assembly workers with 3+ years average experience
- 10+ dedicated R&D engineers for continuous product improvement
- 16 sets of German injection machines with 16 production lines
Quality Assurance & Testing
- 30+ advanced testing machines including OTDR, 3D, VFL, IL & RL test instruments
- Tension strength testers and crush resistance testers
- Power meter testers and comprehensive light checking equipment
Global Presence & Customization
- OEM branding services available
- Active participation in major international exhibitions: OFC, ECOC, CommunicAsia, NETCOM, AFRICACOM, SVIAZ ICT, CommunicIndonesia, Global Source Electronic Exhibition
Quality Control Process
- Raw material inspection before production begins
- Full inspection after each manufacturing process
- Comprehensive half-done production quality checks
- Complete finished product inspection before packaging
- Final spot check verification before shipping
Delivery Information
- Samples: 1-3 working days
- Mass production orders: 3-7 working days
- Packaging options: Plastic bag, carton, and pallet available according to customer requirements
Frequently Asked Questions
How can I get your catalogue and price list?
Please provide your email or contact information through our website to receive our comprehensive catalogue and current price list.
Can I negotiate the prices?
Yes, we offer competitive pricing and may consider discounts for multiple container loads of mixed goods.
How much will the shipping charges be?
Shipping charges depend on your shipment size and preferred shipping method. We provide detailed cost breakdowns upon request.
Can I visit your facility?
Certainly! Our factory is located in Shenzhen, China. Please contact us to schedule an appointment for a facility tour.
What if there is a quality problem when we receive the goods?
If you encounter quality issues upon unpacking, please document with photos for our reference. Our QC department will investigate thoroughly and provide optimal solutions, implementing improvements for future production.
What are your packing terms?
Standard packaging includes blister boxes and cartons. We accommodate custom packaging requests to meet specific customer requirements.
What are your payment terms?
Standard terms: T/T 30% deposit, 70% balance before delivery. We provide product and packaging photos before final payment.
What are your delivery terms?
We support EXW, FOB, CFR, CIF, and DDU delivery terms to accommodate global shipping requirements.
What is your delivery time?
Standard delivery: 5-7 working days after receiving advance payment. Specific timing depends on product items and order quantity.
Can you produce according to samples?
Yes, we specialize in manufacturing products based on customer samples or technical drawings with precision and quality.
If you're interested in our fiber optic products or have any technical questions, our engineering team is available to assist you at any time!
