1U-19 inch MPO/MTP High-Density rack-mount fiber patch panel for Data Center Application
تفاصيل المنتج:
| مكان المنشأ: | شنتشن، الصين |
| اسم العلامة التجارية: | Takfly/OEM |
| إصدار الشهادات: | CE, ROHS, REACH, ISO9001, ISO14001 |
| رقم الموديل: | تي كيه-إتش آر إس-1096 إي |
شروط الدفع والشحن:
| الحد الأدنى لكمية: | 1 قطعة |
|---|---|
| الأسعار: | Can be negotiated |
| تفاصيل التغليف: | أكياس PP + صندوق كرتوني/صندوق بلاستيكي + صندوق كرتوني |
| وقت التسليم: | 3-7 أيام عمل |
| شروط الدفع: | ويسترن يونيون، موني جرام، L / C، T / T |
| القدرة على العرض: | 3000 قطعة/أسبوع |
|
معلومات تفصيلية |
|||
| اسم المنتج: | لوحة التصحيح MPO MTP | موصل: | إل سي |
|---|---|---|---|
| قطر الكابل: | 0.9/0.6 ملم | نوع الألياف: | SM MM |
| طلب: | مركز البيانات | فقدان الإدراج: | .20.2 ديسيبل |
| عدد الألياف: | 12 | خسارة العودة: | ≥20 ديسيبل |
| إبراز: | 1U 19 inch MPO patch panel,MTP high-density fiber panel,rack-mount fiber patch panel,MTP high-density fiber panel,rack-mount fiber patch panel |
||
منتوج وصف

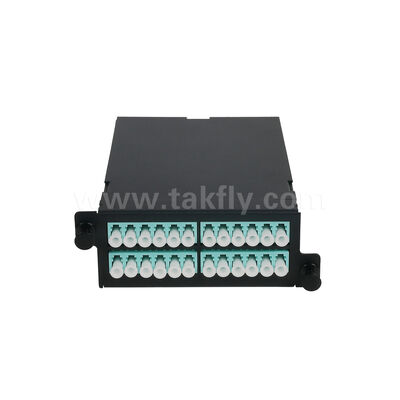

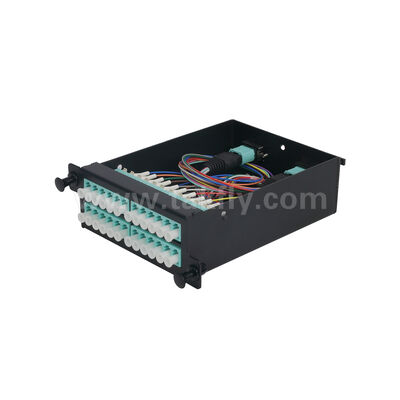

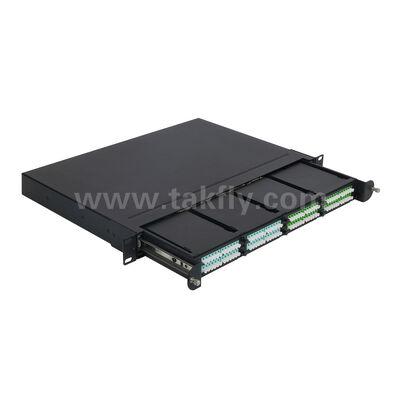

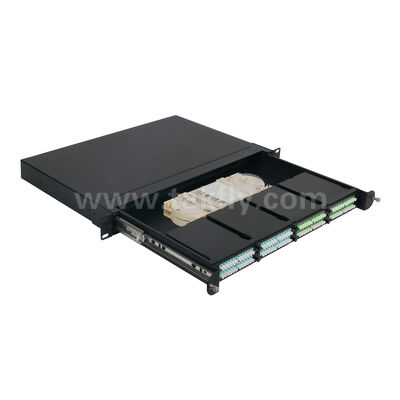

1U-19 inch MPO/MTP High-Density Rack-Mount Fiber Patch Panel
Product Overview
This 1U-19 inch MPO/MTP high-density rack-mount fiber patch panel is engineered for large data center applications including MDF installations, IDF wiring areas for optical fiber backbone connections, fiber distribution unit management, and other high-density integrated fiber environments. Designed for installation in standard 19-inch racks and cabinets.
Key Features
- Constructed from high-quality aluminum alloy with durable electrostatic coating
- Compatible with 19-inch rack-mount and cabinet installations for centralized cassette module management
- 1U high-density design supporting 96 fibers for LC interface
- Available with male or female MPO/MTP connectors with precise PIN and adapter connections
- Modular design with plug-in locking structure and clear line sequence identification
- Compact, lightweight construction with impact-resistant, flame-retardant, and corrosion-resistant properties
Technical Specifications
Applications
- Optical fiber communication dense wiring systems between buildings
- Optical link interconnection in LAN cabling for active equipment
- Telecommunication base stations
- Data center rooms in industrial and commercial buildings
- CATV, LAN, WAN, and FTTX networks
Capacity Information
The 1U 19-inch MPO/MTP Patch Panel accommodates 4 pre-connected cassette modules, with maximum capacity of 1152 cores for MPO interface or 96 cores for LC interface. Each independent pre-terminated module box is placed within the optical fiber distribution frame to create a complete patch panel system.
Frequently Asked Questions
What is Takfly/OEM MPO/MTP?
Takfly/OEM MPO/MTP is a high-performance connector used in fiber optic cabling systems, manufactured in Shenzhen, China.
What are the benefits of Takfly/OEM MPO/MTP?
Takfly/OEM MPO/MTP offers superior performance, increased density, and cost savings for high-density cabling applications.
What types of applications can Takfly/OEM MPO/MTP be used for?
Suitable for data centers, telecommunications, and other high-density cabling systems requiring reliable fiber optic connections.
What are the advantages of Takfly/OEM MPO/MTP?
Provides improved speed, increased reliability, and higher density compared to traditional fiber optic connectors.
What is the warranty for Takfly/OEM MPO/MTP?
Takfly/OEM MPO/MTP comes with a comprehensive one-year warranty.
