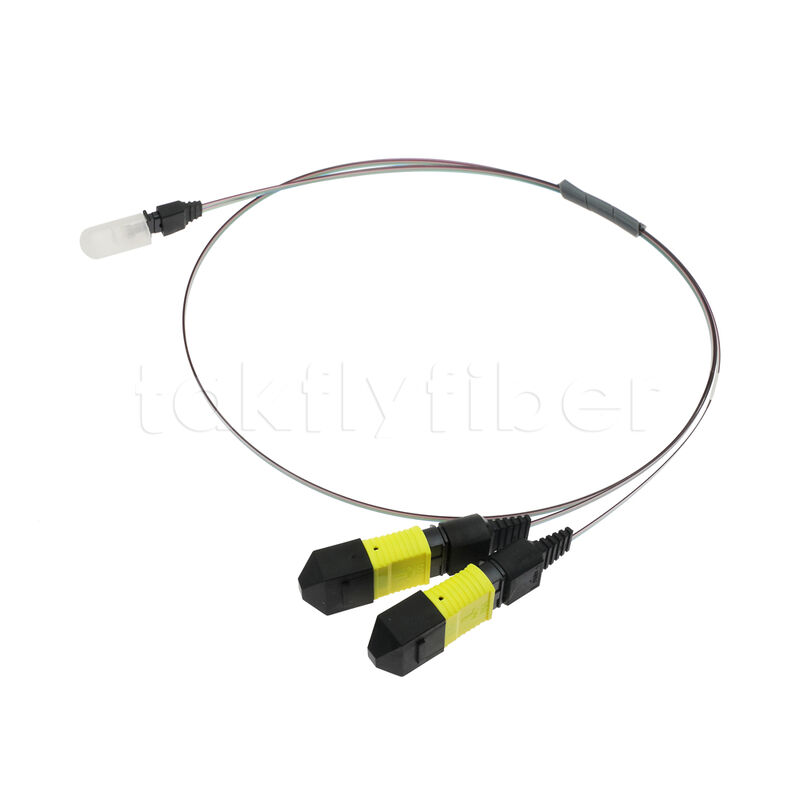

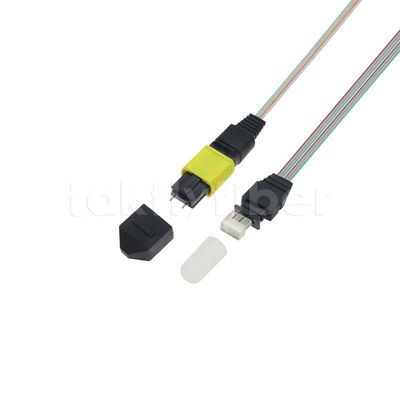

2x8F MTP-16CH FA Fiber Array Components for High-speed Transceiver CPO OCS Data Center Application
تفاصيل المنتج:
| مكان المنشأ: | شنتشن، الصين |
| اسم العلامة التجارية: | OEM/Takfly |
| إصدار الشهادات: | CE, ROSH REACH |
| رقم الموديل: | DF-MT-2FA |
شروط الدفع والشحن:
| الحد الأدنى لكمية: | 1 قطعة |
|---|---|
| الأسعار: | Can be negotiated |
| تفاصيل التغليف: | أكياس PP + صندوق كرتوني/صندوق بلاستيكي + صندوق كرتوني |
| وقت التسليم: | 3-15 يوم عمل حسب الكمية والمتطلبات |
| شروط الدفع: | ل / c، / تي تي، ويسترن يونيون، مونيغرام، بايبال |
| القدرة على العرض: | 20000 قطع شهريا |
|
معلومات تفصيلية |
|||
| اسم المنتج: | مكونات صفيف الألياف 2x8F MTP-16CH FA لتطبيق مركز بيانات جهاز الإرسال والاستقبال عالي السرعة CPO OCS | نوع الألياف: | OM3، OM4؛ OM1، OM2؛ OS1، OS2؛ مساءً؛ OM5 |
|---|---|---|---|
| عدد الألياف: | 16 | زاوية FA: | 0 / 42.5 درجة |
| طول الألياف: | 20 ~ 100 مم، طول مخصص متاح | ||
| إبراز: | High Transmission Rate Fiber Array FA Assembly,Low Consumption MT-FA Patch Cord,High Stability and Reliability 36CH Fiber Array,Low Consumption MT-FA Patch Cord,High Stability and Reliability 36CH Fiber Array |
||
منتوج وصف
2x8F MTP-16CH FA Fiber Array Components Description
Cable assemblies featuring a Fiber Array Unit (FAU) are increasingly more common. These assemblies consist of a fiber array on one end and a standard fiber optic connector (such as MPO, LC, SC) on the other. This trend is driven by the necessity to direct fiber optic signals from a standardized connector within a conventional fiber optic network to a Photonic Integrated Circuit (PIC). The fiber array serves as a precise alignment tool, ensuring the accurate alignment of multiple fibers into the waveguides of the PIC or other compact optical devices. Typically, fibers are arranged at a consistent pitch and in a row, ensuring alignment with the internal structures of the system, whether it is a PIC or another optical system.
2x8F MTP-16CH FA Fiber Array Components Application
Active Optical Modules
Communication, high-speed, high-capacity fiber optic transmission
The internal connector application in fiber equipment
Parallel optical transceiver modules, supercomputers, testing equipment, and military applications
2x8F MTP-16CH FA Fiber Array Components Features
- With stable optical characteristics
- Use high-precision and elite MT ferrule, small bending radius fiber to achieve low loss
- Typical core pitch tolerance <±0.5μm
- High accuracy and customization
- Optical characteristics comply with IEC TIA/EIA and other relevant standards
- RoHS 2.0 Compliant
3x12F MTP - 36CH Fiber Array FA Assembly Specification
|
Parameter |
Unit |
Value |
|||||
|
Fiber Count |
- |
Optional |
|||||
|
Fiber Mode |
- |
SM:G652,G657 |
MM:OM1,OM2,OM3,OM4,OM5 |
||||
|
Wavelength |
- nm |
1310/1550 |
850/1300 |
||||
|
MT |
Endface Polishing |
- |
PC |
APC |
PC |
APC |
|
|
Insertion Loss(IL) |
dB |
≤0.35 |
≤0.35 |
||||
|
Return Loss(RL) |
dB |
≥50 |
≥60 |
≥20 |
≥40 |
||
|
Durability |
Time |
50 |
|||||
|
FA |
Lid |
L |
mm |
2.5 |
Optional |
||
|
W |
mm |
2 |
|||||
|
T |
mm |
0.2 |
|||||
|
V-Groove |
L |
mm |
5 |
||||
|
W |
mm |
2 |
|||||
|
T |
mm |
0.5 |
|||||
|
Core Pitch |
μm |
175,250 |
|||||
|
Bare fiber degree |
° |
8,42.5,45 |
|||||
|
Insertion Loss(IL) |
dB |
|
≤0.8 |
||||
|
Endface Geometric Parameters (3D) |
Radius of Curvature |
mm |
Satisfying IEC TIA/EIA standards |
||||
|
Apex Offset |
μm |
||||||
|
Fiber Spherical Height |
nm |
||||||
|
Angular Error |
° |
||||||
|
Operating Temperature |
℃ |
-20 ~ +80 |
|||||
|
Storage Temperature |
℃ |
-15 ~ +60 |
|||||
