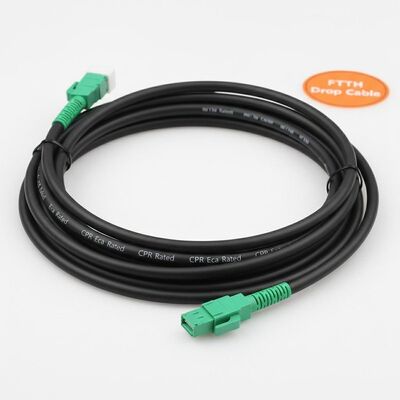

SC APC Fiber Optic Patchcord with G657A2 Fiber TPU Black Jacket and CPR Eca Rated for FTTH Drop Cable
تفاصيل المنتج:
| مكان المنشأ: | الصين |
| اسم العلامة التجارية: | DF/OEM/Nuetral |
| إصدار الشهادات: | CE/ROHS/REACH/ISO9001/ISO14001 |
| رقم الموديل: | TK-PC-4.5DS-5M-SCA-LCA-LZB |
شروط الدفع والشحن:
| الحد الأدنى لكمية: | 100 قطعة |
|---|---|
| الأسعار: | US$0.01~4.69/PC |
| تفاصيل التغليف: | تصدير التعبئة القياسية |
| وقت التسليم: | 5-9 أيام عمل تعتمد على الكمية |
| شروط الدفع: | Western Union ، T/T ، Moneygram/PayPal |
| القدرة على العرض: | 10000 قطعة/يوم |
|
معلومات تفصيلية |
|||
| اسم المنتج: | سترة سوداء من فئة الاتصالات CPR Dca معتمدة مقاس 4.5 مم مزدوجة من الألياف الضوئية الصحية SM G657AB3 L | خسارة التداخل: | .30.3 ديسيبل |
|---|---|---|---|
| خسارة العودة: | APC SM ≥ 60 ديسيبل | نوع الألياف: | OS2، G652D، G657A1، G657A2، G657B3 |
| القطر: | 4.5 ملم | نوع الموصل: | APC |
| مادة السترة: | LSZH | لون: | أسود |
| الطول الموجي: | 1310nm ، 1550nm | طول: | 5 م أو حسب الطلب |
| درجة حرارة التشغيل: | -20 درجة مئوية ~ 70 درجة مئوية | قطر الألياف: | 9/125 |
| درجة: | درجة الاتصالات | شهادة: | CE / بنفايات / الوصول |
| القدرة الإنتاجية: | 10000 قطعة/يوم | ||
| إبراز: | G657A2 Fiber Optic Patchcord,TPU Black Jacket FTTH Drop Cable,CPR Eca Rated SC APC Patchcord,TPU Black Jacket FTTH Drop Cable,CPR Eca Rated SC APC Patchcord |
||
منتوج وصف

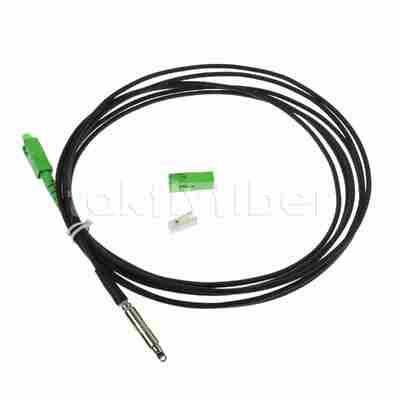

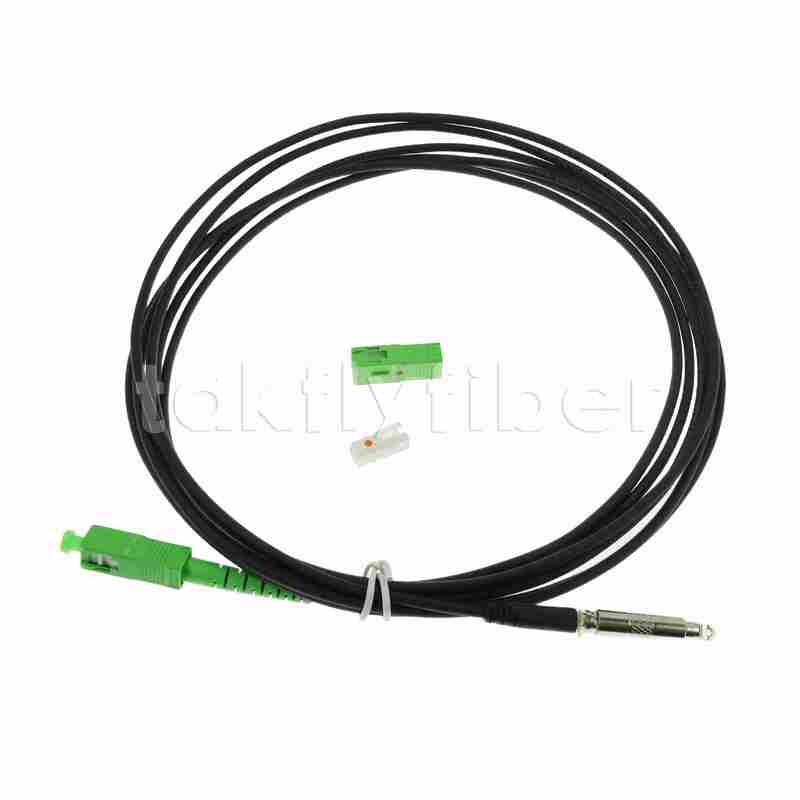

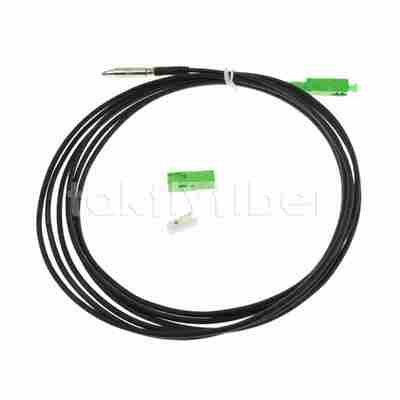

Pro-connectorized FTTH patch cord assembly with Takfly's proprietary Bullet SC APC connector and G657A2 Simplex TPU high tensile strength cable.
This Bullet SC APC connector can be threaded through pipes with inner diameter >6mm, making it ideal as the final cable in FTTH projects. It connects between FAP boxes, FTB, FDB, face plates, and ONU/ONT equipment with easy accessibility and simple installation.
| Parameter | Specification |
|---|---|
| End face type | PC, UPC and APC |
| Fiber type | SM G657A2 |
| Cable Diameter | 3.0mm |
| Insertion loss | ≤ 0.3 dB |
| Return loss | UPC SM≥50dB, APC SM≥ 60 dB |
| Repeatability | ≤ 0.1 |
| Durability | ≤ 0.2dB |
| Interchangeability | ≤ 0.2dB |
| Tensile strength | >200N |
| Operating Temperature | -20℃~70℃ |
| Storage Temperature | -40℃~80℃ |
| Outer Sheath Material | LSZH or TPU Black Jacket |
| Bending radius (Static/Dynamic) | 10D/20D |
| Length | Customized |
| Item | Parameter | Unit | Specification (SM G657A2/G657B3) |
|---|---|---|---|
| Mode Field Diameter | 1310nm | μm | 8.2~9.0 |
| Mode Field Diameter | 1550nm | μm | 9.1~10.1 |
| Cladding Diameter | μm | 125±0.7 | |
| Cladding Non-Circularity | ％ | ≤0.7 | |
| Core-Cladding Concentricity Error | μm | ≤0.5 | |
| Coating Diameter | μm | 245±5 | |
| Coating Non-Circularity | ％ | ≤6.0 | |
| Cladding-Coating Concentricity Error | μm | ≤12 | |
| Cable Cutoff Wavelength | nm | λcc ≤1260 | |
| Attenuation (Max) | 1310nm | dB/KM | ≤0.36 |
| Attenuation (Max) | 1550nm | dB/KM | ≤0.25 |
| Macro-Bending Loss | 1 Turn x 7.5mm radius@1550nm | dB | ≤0.08 |
| Macro-Bending Loss | 1 Turn x 7.5mm radius@1265nm | dB | ≤0.25 |
| Component | Description |
|---|---|
| Optical Fiber | Fiber count: 1, Color: Red |
| Tight Buffer Fiber | Material: LSZH, Diameter: 0.85±0.05 mm, Color: Red, One-time stripping length: 5-8 mm |
| Strength Member | Material: Aramid yarn |
| Outer Jacket | Material: TPU, Diameter: 3.0±0.2 mm, Color: Black |
| Test | Standard | Performance |
|---|---|---|
| Tensile performance | IEC 60794-1-2-E1 | Short-term: 800N, Long-term: 300N |
| Crush Resistance | IEC 60794-1-E3 | Short-term: 500N, Long-term: 100N |
| Cable Impact | IEC 60794-1-E4 | No damage to outer jacket and inner elements |
| Repeat Bending | IEC 60794-1-E6 | Compliant |
| Torsion | IEC 60794-1-E7 | Compliant |
| Cable Bend | IEC 60794-1-E11 | Compliant |
| Temperature Range | IEC 60794-1-2-F1 | -20℃ to +60℃ |
| Bending Radius | Static | 10mm |
| Bending Radius | Dynamic | 20mm |
- CATV
- Telecommunication networks
- Active device termination
- Local area networks (LANS)
- Data processing networks
- Test equipment
- Wide area networks (WANS)
- Low insertion loss and High reflection loss
- Good exchange ability
- Good durability
- High temperature stability
- Standard: Telcordia GR-326-CORE
Established in 2000 with over 400 employees, Takfly has 21 years of manufacturing experience in fiber optic products. Our product range includes MPO/MTP Patch cords, Fiber Optic Patchcords, pigtails, adapters, attenuators, PLC Splitters, WDM/CWDM/DWDM, Termination Boxes, Fast Connectors, Media Converters, POE Switches, SFP Transceivers, and High Power products.
ISO9001, ISO14001, CE, ROHS, REACH, FCC, CPR, and Anatel
Telefonica, Orange, Movistar, Vodafone, Singtel, Starhub, Corning, Amphenol, SENKO
R&D team with over 26 engineers, OEM and ODM services available
High quality products, competitive pricing, fast delivery (2-7 days), and professional guidance to help customers expand business and increase sales.
