High Density 1U 19 inch 96F MPO MTP - LC SM MM Fiber Optical Patch Panel / Fiber Optic Chassis / Fiber Optic ODF/ Fiber Optic Distribution Box for 4pcs 24F MPO MTP-LC Cassette
تفاصيل المنتج:
| مكان المنشأ: | شنتشن، الصين |
| اسم العلامة التجارية: | OEM |
| إصدار الشهادات: | CE/ROHS/CPR/REACH/ISO9001/ISO14001 |
| رقم الموديل: | MPO MTP |
شروط الدفع والشحن:
| الحد الأدنى لكمية: | 1 |
|---|---|
| الأسعار: | USD10.00-100.00/Piece |
| تفاصيل التغليف: | مع علبة كرتون |
| شروط الدفع: | / تي تي، ويسترن يونيون، بايبال |
|
معلومات تفصيلية |
|||
| موصل الألياف: | MPO، MTP، MT، SC، LC، FC، ST، الخ. | النوى الألياف: | سينجلكس، دوبلكس، 4، 8، 12، 24 ألياف، إلخ. |
|---|---|---|---|
| وضع الألياف: | سم (G655، G652، G657)، مم (OM1، OM2، OM3، OM4، OM5) | نوع التلميع: | الكمبيوتر الشخصي ، UPC ، APC |
| جنس: | الذكور الإناث | قطر الكابل: | 250um، 0.9 مم، 2.0 مم، 3.0 مم أو حسب الطلب |
| مادة السترة: | PVC، LSZH، OFNR، OFNP، إلخ. | طول الكابل: | 0.5M، 1M، 3M، 5M أو حسب الطلب |
| قطبية الكابل: | النوع أ، النوع ب، النوع ج أو حسب الطلب | لون الكابل: | الأصفر، أكوا، البنفسجي، الجير أو حسب الطلب |
| إبراز: | 1U 19 inch fiber optic patch panel,96F MPO MTP fiber optic chassis,24F MPO MTP-LC cassette distribution box,96F MPO MTP fiber optic chassis,24F MPO MTP-LC cassette distribution box |
||
منتوج وصف

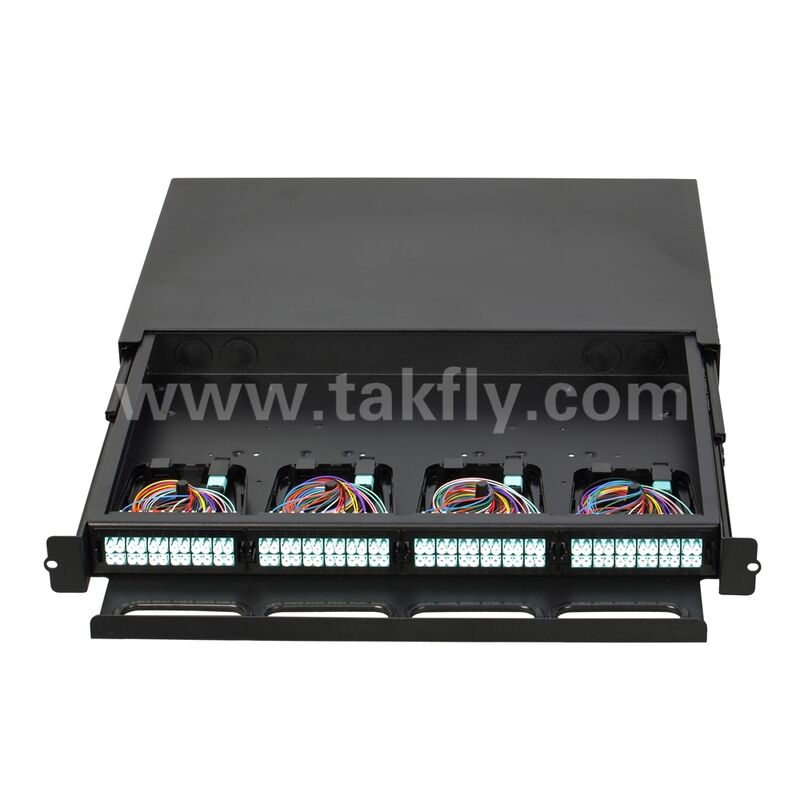

High Density 1U 19 inch 96F MPO/MTP-LC Fiber Optic Patch Panel

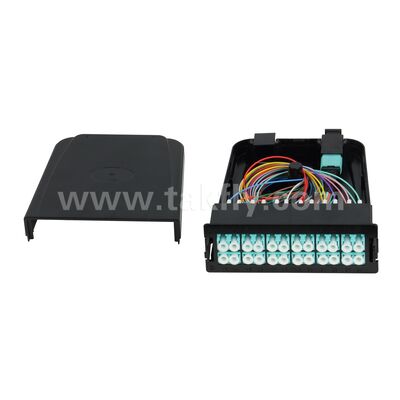

This high-density 1U 19-inch fiber optic patch panel supports 96 fibers and is designed for 4 pieces of 24F MPO/MTP-LC cassettes. Ideal for high-density connectivity applications in data centers and telecommunications infrastructure.
Technical Specifications
| Parameter | Standard SM | Low Loss (Elite) SM | Standard MM | Low Loss MM |
|---|---|---|---|---|
| Insertion Loss (Typical) | 0.35dB | 0.20dB | 0.35dB | 0.20dB |
| Insertion Loss (Maximum) | 0.75dB | 0.35dB | 0.60dB | 0.35dB |
| Return Loss | ≥60 for APC (8° Angle Polish) ≥20 for PC |
≥50 for PC | -- | -- |
| Male/Female | Male: With Pins, Female: Without Pins | |||
| Tensile Strength | ≤0.3 (Max 66N) | |||
| Vibration | ≤0.3 (10 ~ 55Hz) | |||
| Thermal Cycle | ≤0.3 (-40 ~ 75℃, 21 Cycles) | |||
Product Images
Our Services
- Order Inquiry: Always online to guarantee prompt reply to clients
- Order Production: Close coordination with production department to ensure accurate delivery times
- Pre-Shipment Quality Control: Double-check order quantity, packaging, and carton strength to prevent damage
- Post-Shipment Tracking: Continuous monitoring of shipping status with regular client updates
- Shipping Options: DHL, UPS, FEDEX, TNT, EMS, SEA, AIR, and more
