High Density MPO MTP Female Male - 12F 24F LC 0.9mm SM MM LGX Cassette Module Box for MPO MTP Fiber Optical Patch Panel / Fiber Optic Chassis / Fiber Optic ODF/ Fiber Optic Distribution Box
تفاصيل المنتج:
| مكان المنشأ: | شنتشن، الصين |
| اسم العلامة التجارية: | OEM |
| إصدار الشهادات: | CE/ROHS/CPR/REACH/ISO9001/ISO14001 |
| رقم الموديل: | MPO MTP |
شروط الدفع والشحن:
| الحد الأدنى لكمية: | 1 |
|---|---|
| الأسعار: | USD10.00-100.00/Piece |
| تفاصيل التغليف: | مع علبة كرتون |
| شروط الدفع: | / تي تي، ويسترن يونيون، بايبال |
|
معلومات تفصيلية |
|||
| موصل الألياف: | MPO، MTP، MT، SC، LC، FC، ST، الخ. | النوى الألياف: | سينجلكس، دوبلكس، 4، 8، 12، 24 ألياف، إلخ. |
|---|---|---|---|
| وضع الألياف: | سم (G655، G652، G657)، مم (OM1، OM2، OM3، OM4، OM5) | نوع التلميع: | الكمبيوتر الشخصي ، UPC ، APC |
| جنس: | الذكور الإناث | قطر الكابل: | 250um، 0.9 مم، 2.0 مم، 3.0 مم أو حسب الطلب |
| مادة السترة: | PVC، LSZH، OFNR، OFNP، إلخ. | طول الكابل: | 0.5M، 1M، 3M، 5M أو حسب الطلب |
| قطبية الكابل: | النوع أ، النوع ب، النوع ج أو حسب الطلب | لون الكابل: | الأصفر، أكوا، البنفسجي، الجير أو حسب الطلب |
| إبراز: | High Density MPO MTP fiber cassette,12F 24F LC fiber optic module,LGX cassette for fiber patch panel,12F 24F LC fiber optic module,LGX cassette for fiber patch panel |
||
منتوج وصف

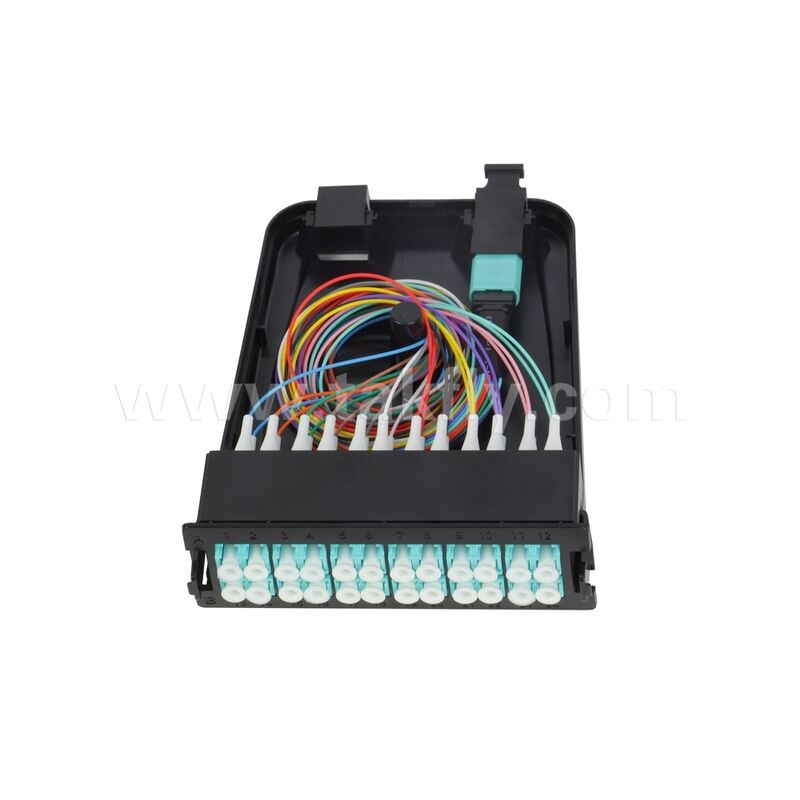

High Density MPO MTP Fiber Optic Cassette Module
This high-density MPO MTP cassette module supports 12F and 24F configurations with LC 0.9mm connectors, designed for compatibility with MPO MTP fiber optic patch panels, chassis, ODF units, and distribution boxes. Ideal for high-density connectivity applications in data centers and telecommunications infrastructure.
Product Overview
Our MPO MTP LC SC FC ST fiber optic patch cords, breakout cables, and trunk cables are engineered for reliable high-density connectivity. Available in various configurations including optical fiber patch cables, fiber optic jumpers, and optical fiber trunk cables to meet diverse installation requirements.
Technical Specifications
| Parameter | Standard SM | Low Loss (Elite) SM | Standard MM | Low Loss MM |
|---|---|---|---|---|
| Insertion Loss (Typical) | 0.35dB | 0.20dB | 0.35dB | 0.20dB |
| Insertion Loss (Maximum) | 0.75dB | 0.35dB | 0.60dB | 0.35dB |
| Return Loss | ≥60 for APC (8° Angle Polish) ≥20 for PC |
≥50 for PC | -- | -- |
| Male/Female | Male: With Pins, Female: Without Pins | |||
| Tensile Strength | ≤0.3 (Max 66N) | |||
| Vibration | ≤0.3 (10 ~ 55Hz) | |||
| Thermal Cycle | ≤0.3 (-40 ~ 75℃, 21 Cycles) | |||
Product Images
Our Services
- Order Inquiry: Always online to guarantee prompt reply to clients
- Order Production: Close coordination with production department to ensure accurate delivery times
- Pre-Shipment Quality Control: Double-check order quantity, packaging, and carton strength to prevent damage
- Post-Shipment Tracking: Continuous monitoring of shipping status with regular client updates
- Shipping Options: DHL, UPS, FEDEX, TNT, EMS, SEA, AIR, and more
Have questions? Please send an inquiry NOW! Welcome & Just Do It!
