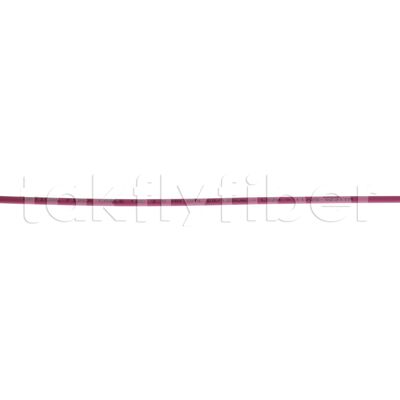

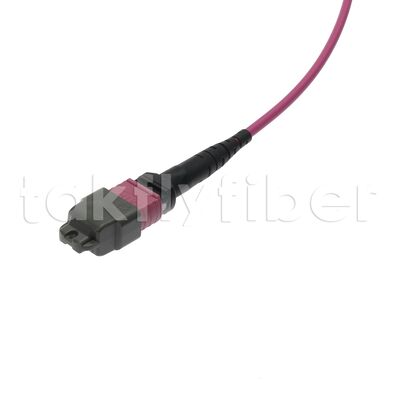

CPR B2ca MTP® 12 Cores MPO Trunk Cable, F to F, UPC, 12F, OM4, OFNP, 0.20dB, Type B
تفاصيل المنتج:
| Place of Origin: | Shenzhen, China |
| اسم العلامة التجارية: | Neutral/OEM/Takfly |
| إصدار الشهادات: | CE/ROHS/REACH/CPR/ISO9001/ISO14001 |
| Model Number: | TK-PC-MTP-12F-OM4-OFNP-005 |
شروط الدفع والشحن:
| Minimum Order Quantity: | 1 |
|---|---|
| الأسعار: | US$0.01~US$25.99/PC |
| Packaging Details: | PE bag |
| Delivery Time: | 3-7working days |
| Payment Terms: | Western Union, L/C, T/T,Paypal |
| Supply Ability: | 500PCS/Day |
|
معلومات تفصيلية |
|||
| Cores: | 12F | Fiber Type: | MM OM4 |
|---|---|---|---|
| Length: | 1M/5M/15M or customized | Cable Diameter: | 3.0mm |
| Connector Type: | MPO/MTP | Insertion Loss: | Low loss: 0.35dB |
| Return Loss: | MM ≥20dB | Cable Jacket: | OFNP |
| Cable Color: | Magenta, Violet | Application: | Data Center, Telecom, Network |
| إصدار الشهادات: | CE, ROHS, REACH, CPR, ISO9001, ISO14001 | Product Name: | 12F Fiber Optic Harness MPO-LC Uniboot MPO Breakout Patch Cable, Plenum (OFNP), 0.35dB Max. |
| إبراز: | MTP 12 core MPO trunk cable,OM4 MPO fiber optic cable,12F MPO cable with warranty,OM4 MPO fiber optic cable,12F MPO cable with warranty |
||
منتوج وصف
CPR B2ca MTP® 12 Cores MPO Trunk Cable, F to F, UPC, 12F, OM4, OFNP, 0.20dB, Type B
Takfly's MTP® MPO trunk cables are factory pre-terminated and rigorously tested, featuring reliable MTP®-MTP® connectors. The ultra-low loss MTP® connectors minimize signal loss during transmission, supporting long-distance applications and multiple connection areas. The robust double-jacket sheath enhances crush resistance, ensuring durability and performance over long-distance runs. These features make MTP® trunks an ideal choice for high-density cabling in data centers, widely used in main, horizontal, and zone distribution areas.
MPO Fiber Optic Patch Cable Specifications
| Item | LC / SC / ST / FC | MPO / MTP |
|---|---|---|
| End face type | PC / UPC / APC | PC and APC |
| Fiber type | SM (G652 / G655 / G657); MM (OM1-OM5) | |
| Core number | 2 / 4 / 6 / 8 / 12 / 24 | |
| Cable Diameter | 0.9 / 2.0 / 3.0 | Mini Round cable: Max 4.5mm; Ribbon cable: Max 3.0*5.0mm |
| Insertion loss (dB) | ≤ 0.3 | Standard: ≤0.35/0.7 (Typical/Max) Low Loss: ≤0.2/0.35 (Typical/Max) |
| Return loss (Min) | UPC SM: 40dB APC SM: 60 dB PC MM: 25 dB |
SM: APC: 60dB MM: PC: 20dB |
| Test Wavelength (nm) | SM: 1310/1550 MM: 850/1300 |
|
| Repeatability | ≤ 0.1dB | |
| Durability | ≤ 0.2dB | |
| Interchangeability | ≤ 0.2dB | |
| Operating Temperature | -20℃~70℃ | |
| Storage Temperature | -40℃~80℃ | |
| Outer Sheath Material | OFNP/LSZH | |
| Bending radius (Static/Dynamic) | 10D/20D | |
| Length | Customized | |
Features
- Fiber and Cable Options: Available in SM (G.657A1), OM4
- Compact LSZH cable jackets available
- Jacket Standard Colors: G.657A1 - Yellow, OM4 - Aqua or Erika Violet
MPO Interface
- Female and Male MPO connectors available
- Base-8, Base-12 available (for Base-16, and Base-24 contact sales rep)
- Standards-based polarity options available
- Base 8 - Pol B/QSFP
- Base 12 - Polarity A, B & C
Optimized Performance
- Low-loss Premium MPO connectors and Bend Insensitive fiber assure low insertion losses and reduced power penalties in tight budget high-speed network environments
- 100% factory tested for proven reliability and connectivity
- Manufactured in accordance with TIA 568 and IEC 61754 standards
Benefits
- Next Generation Network Speeds: Assemblies can be used throughout multiple active equipment upgrades to future-proof your network
- Modular connectivity supports 400G/800G migration plans
- Factory terminated assembly saves installation and reconfiguration time during moves, adds and changes
- Configurable length assemblies reduce slack management, patch field congestion, and improve air-flow
Applications
- Data Center
- Campus
- Central Office
- Office Backbone
Polarity
Takfly MTP MPO Patch Cable Production Flow Diagram
Why Choose TAKFLY
Professional Manufacturer
- More than 25 years manufacturing experience in fiber optic products - one stop purchasing
- More than 450 assembly workers with 3+ years experience
- More than 26 R&D Engineers
- 16 Sets Germany imported Injection Machines and 10+ Cable Production Lines
- 30+ sets of Testing Machines: OTDR, 3D, VFL, IL&RL test instrument; tension strength tester, crush resistance tester, power meter tester, light checker, etc.
- OEM Brand acceptable
- Worldwide Exhibition participation
- 24/7 After-sales Services
Quality Control
- Spot check raw material incoming inspection before production
- Full check after every individual process
- Full check production half done
- Full check finished products before packing
- Spot check before shipping
Delivery
- Samples: 1-3 working days
- Mass Production Order: 3-7 working days
Shipping
- DHL, UPS, FEDEX, TNT, EMS (3-5 working days)
- By Sea or By Air using your preferred forwarder or our partnered one
Payment Term: T/T, Paypal, Western Union and L/C available
Price: Negotiable for large quantities
I have been working in this field for more than 10 years and can provide excellent service and professional answers!
If you're interested in our products or have any questions, please send me an inquiry today!
