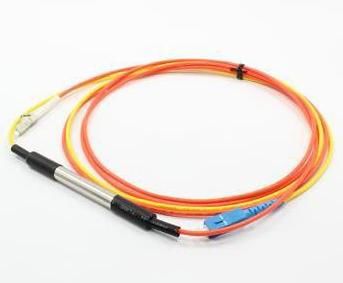

Mode-conditioning Patch cord LSZH SM/MM 2.0 / 3.0mm
تفاصيل المنتج:
| مكان المنشأ: | الصين ، شنتشن |
| اسم العلامة التجارية: | DF/OEM/Nuetral |
| إصدار الشهادات: | CE/ROHS/REACH/ISO9001/ISO14001 |
| رقم الموديل: | تك-PC-48F-SC-OS2-50M |
شروط الدفع والشحن:
| الحد الأدنى لكمية: | قابل للتفاوض |
|---|---|
| الأسعار: | negotiable denpend on QTY |
| تفاصيل التغليف: | صندوق نفطة + كرتون |
| وقت التسليم: | 5-9 أيام عمل تعتمد على الكمية |
| شروط الدفع: | ويسترن يونيون، / تي تي، موني جرام / بايبال |
| القدرة على العرض: | 1000pcs/يوم |
|
معلومات تفصيلية |
|||
| اسم المنتج: | سلك التصحيح لتكييف الوضع | نوع الوجه النهائي: | UPC وAPC |
|---|---|---|---|
| نوع الألياف: | G652D، G657A، G657B، OM1، OM2، OM3، OM4 | قطر الكابل: | 2.0 / 3.0 مللي متر |
| فقدان الإدراج: | ≤ 0.3 ديسيبل | خسارة العودة: | SM/UPC≥50dB،APC≥60dB،MM/UPC≥20dB |
| التكرار: | 1000 مرة قيمة التغيير النموذجية ≥ 0.20 ديسيبل | درجة حرارة التشغيل: | -20 ℃ ~ 65 ℃ |
| درجة حرارة التخزين: | -40 ℃ ~ 85 ℃ | مادة غمد الخارجي: | LSZH |
| نصف قطر الانحناء (ثابت/ديناميكي): | 10d/20d | طول: | حسب الطلب |
| العلامة التجارية الألياف: | كورنينج، واي أو إف سي، أو إف إس، دراكا | ||
منتوج وصف
Mode-conditioning Patch cord LSZH SM/MM 2.0 / 3.0mm
Mode-conditioning patch cords are designed for longwave(1310nm) Gigabit Ethernet applications over multimode fiber. They consist an offset connection of a SM fiber to a MM fiber. There are two MM fibers on one end and one MM and one SM fiber on the other. This patch cords is required with -LX or longwave Gigabit Ethernet transceivers that use both SM and MM fibers.
When launching into a MM fiber, the transceivers can generate multiple signals that cause Differential Mode Delay (DMD) which can severely limit transmissiondistances. A mode conditioning patch cord removes these multiple signals, eliminating problems at the receiver end.
Product Applications
- CATV,LANs,WANs
- Telecommunication networks
- Active device termination
- FTTx
- Building network access
- Meet various requirements of market and clients
Product Features
- Low insertion loss and High reflection loss,Stricter than industry standards
- Good exchange ability and good durability,Stable optical properties
- Permanent displacement seal
-
Screen different value delay effection
-
Other connection mode available according customer requirements
- Standard connector,Various connector option: LC,SC,FC,ST etc.
-
Compliant with IEC61754,GR-326,TIA/EIA 568 standard
Product Specifications
Why choose TAKFLY?
Professional manufacturer:
- With more than 25 years manufacturing experience in Fiber optic products
- More than 450 assembly workers with 3 years experienced
- More than 10 R&D Engineers
- 16 Sets Germany imported Injection Machine and 16 Production Lines
- More than 30 sets of Testing Machines: OTDR,3D,VFL,IL&RL test instrument; tension strenth tester, Crush Resistance tester, Power meter tester, light checker, etc.
- OEM Brand is acceptable
- Exhibition: OFC, ECOC, CommunicAsia, NETCOM, AFRICACOM, SVIAZ ICT, CommunicIndonesia, Global Soure Electronic Exhibition, etc.
Quality Control
- Spot check the raw material incoming inspection before production
- Fully check after every individual process finished
- Fully check production half done
- Fully check the finished products before packing
- Spot check before shipping
Delivery
- Samples: 1-3 working days
- Mass Production Order: 3-7 working days
- Packaging: Plastic Bag, Carton and Pallet are available according to your request
FAQ
Q1: How can I get your catalogue and price list?
A1: Please let us know your email or contacts from website directly for our catalogue and price list
Q2: Can I negotiate the prices?
A2: Yes, we may consider discounts for multiple container load of mixed goods
Q3: How much will the shipping charges be?
A3: It depends on the size of your shipment and the method of shipping. We will offer the charge to you as you requested
Q4: Can I visit you?
A4: Sure, our factory is in Shenzhen, China. Please contact us to make an appointment
Q5: What if there is quality problem when we get the goods?
A5: If there is quanlity problem when you un-package the goods, you can take pictures for our reference, our QC department will check the problem and give best solutions to you, Further-more we will also take action to improve the quality in future
Q6: What is your terms of packing?
A6: Generally, we pack our goods in blister box and cartons, and can also accept customize packing by customers
Q7: What is your terms of payment?
A7: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance
Q8: What is your terms of delivery?
A8: EXW, FOB, CFR, CIF, DDU
Q9: How about your delivery time?
A9: Generally, it will take 5-7 working days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order
Q10: Can you produce according to the samples?
A10: Yes, we can produce by your samples or technical drawings
If you're interested in our products or have any doubt, feel free to contact me at any time!
