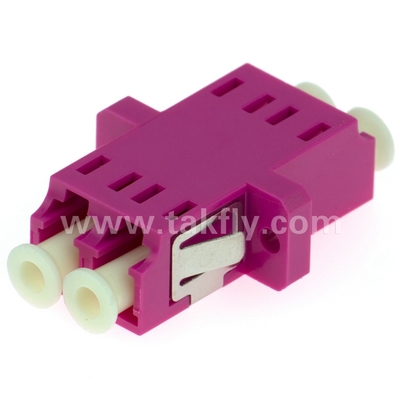

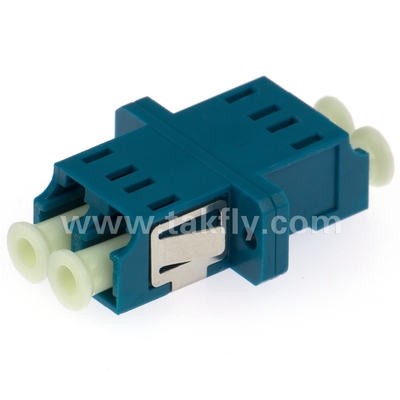

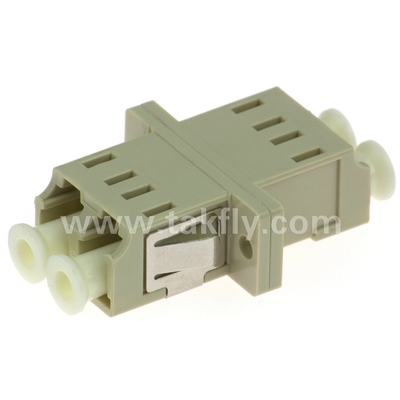

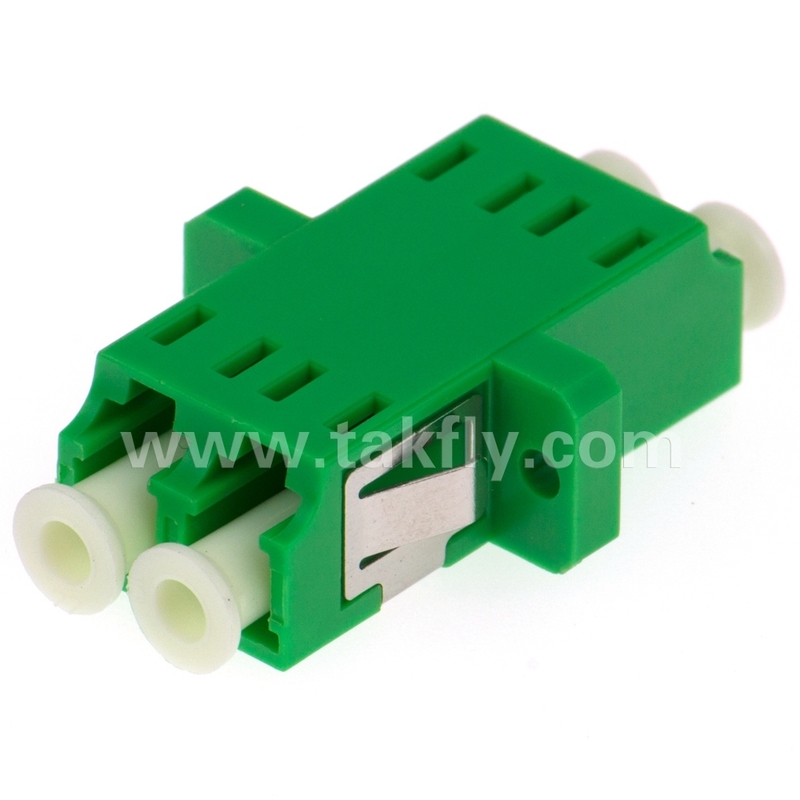

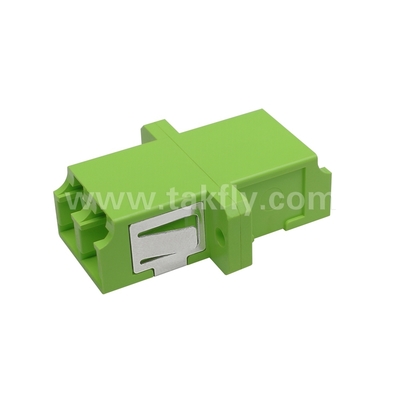

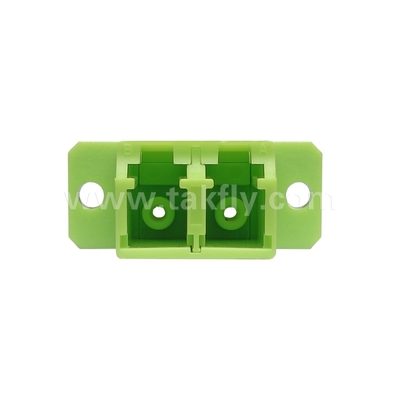

LC Duplex Fiber Optic Adapter Singlemode multimode APC UPC fiber optic adapter
تفاصيل المنتج:
| مكان المنشأ: | الصين |
| اسم العلامة التجارية: | OEM |
| إصدار الشهادات: | CE/REACH/RoHS |
| رقم الموديل: | TK-FOA-LCD-888 |
شروط الدفع والشحن:
| الحد الأدنى لكمية: | 100 |
|---|---|
| الأسعار: | 0.23USD |
| تفاصيل التغليف: | مربع الكرتون 55*40*35 سم |
| وقت التسليم: | 3 ~ 5 أيام |
| شروط الدفع: | T/T ، Western Union ، Moneygram |
| القدرة على العرض: | 100000 / أسبوع |
|
معلومات تفصيلية |
|||
| فقدان الإدراج: | ≤0.2 ديسيبل | عدد الألياف: | دوبلكس |
|---|---|---|---|
| لون: | أزرق/أكوا/روز/الأخضر/البيج/الجير الأخضر | درجة حرارة التشغيل: | -40 ~ 85 درجة |
| إبراز: | LC duplex fiber adapter single mode,fiber optic adapter APC UPC flange,single mode LC duplex adapter,fiber optic adapter APC UPC flange,single mode LC duplex adapter |
||
منتوج وصف
LC Duplex Fiber Optic Adapter Singlemode multimode APC UPC fiber optic adapter
Product Attributes
| Attribute | Value |
|---|---|
| Insertion loss | ≤0.2dB |
| Fiber count | Duplex |
| Color | Blue/Aqua/Rose/Green/Beige/Lime green |
| Operating temperature | -40~85℃ |
Product Description
Fiber optic adapter is the component applicable for the connection between fiber optic connectors, which can help couple the output power from the transmitting fiber into the receiving fiber at the maximum. Moreover, it's also mainly used for the connection between the cables or the cables and the equipment as well. LC adapters from TAKFLY are featured with easy installation, low insertion loss, good interchangeability and high & low temperature resistance.
Key Features
- Single mode and Multimode compatibility
- Zirconia sleeves or Phosphor bronze sleeves
- NTT standard compatible
- Patch panel mount applications
- Compliant with JIS5974 and Bellcore GR-326 standards
- Meets IEC874-14 & IEC874-19 specifications
- All parts compliant with ROHS
Technical Specifications
| Product | LC Adapter |
|---|---|
| Mode | SM | MM |
| Insertion Loss | ≤0.2dB | ≤0.2dB |
| Mating Durability (500 times) | Additional Loss ≤0.1dB |
| Temperature Stability (-40℃～85℃) | Additional Loss ≤0.2dB |
| Operating Temperature | -40℃～+85℃ |
| Storage Temperature | -40℃～+85℃ |
