SC/APC Side Shutter Adapter with Flange LSZH/PVC 2M
تفاصيل المنتج:
| مكان المنشأ: | الصين ، شنتشن |
| اسم العلامة التجارية: | DF/OEM/Nuetral |
| إصدار الشهادات: | CE/ROHS/REACH/ISO9001/ISO14001 |
| رقم الموديل: | تك-PC-48F-SC-OS2-50M |
شروط الدفع والشحن:
| الحد الأدنى لكمية: | قابل للتفاوض |
|---|---|
| الأسعار: | negotiable denpend on QTY |
| تفاصيل التغليف: | صندوق نفطة + كرتون |
| وقت التسليم: | 5-9 أيام عمل تعتمد على الكمية |
| شروط الدفع: | ويسترن يونيون، / تي تي، موني جرام / بايبال |
| القدرة على العرض: | 1000pcs/يوم |
|
معلومات تفصيلية |
|||
| اسم المنتج: | SC/APC محول مصراع جانبي مع شفة | وضع: | SM/MM |
|---|---|---|---|
| خسارة التداخل: | سم ≥0.2 ديسيبل؛ مم ≥0.2 ديسيبل | متانة التزاوج (500 مؤقت): | خسارة إضافية ≤ 0.1 ديسيبل |
| درجة الحرارة～ الاستقرار: | خسارة إضافية ≤ 0.2 ديسيبل | قوة الشد: | 0.9 ملم > 5 ن |
| درجة حرارة التشغيل: | -40 ℃ ~+85 ℃ | درجة حرارة التخزين: | -40 ℃ ~+85 ℃ |
| العلامة التجارية الألياف: | كورنينج، واي أو إف سي، أو إف إس، دراكا | ||
| إبراز: | SC/APC fiber optic adapter with flange,LSZH side shutter fiber adapter,2M PVC SC/APC adapter,LSZH side shutter fiber adapter,2M PVC SC/APC adapter |
||
منتوج وصف
SC/APC Side Shutter Adapter with Flange LSZH/PVC 2M
Fiber optic adapter is the component applicable for the connection between fiber optic connectors, which can help couple the output power from the transmitting fiber into the receiving fiber at the maximum. Moreover, it's also mainly used for the connection between the cables or the cables and the equipment as well. SC adapters from TAKFLY are featured with easy installation, low insertion loss, good interchangeability and high & low temperature resistance etc.
Adapter Applications
- CATV
- Telecommunication networks
- Active device termination
- Local area networks (LANS)
- Data processing networks
- Test equipment
- Wide area networks (WANS)
- Broadband
- FTTH
Adapter Features
- Single mode and Multimode
- Zirconia sleeves or Phosphor bronze sleeves
- Available without flanges or with flange for duplex, saving panel space
- NTT standard compatible
- SC2 8Port high density for patch panel mount applications
- Meet JIS5974 and bellcore GR-326 standard
- Compliant with IEC874-14 & IEC874-19
- All parts compliant with ROHS
Adapter Specifications
| Product | SC Adapter |
|---|---|
| Mode | SM | MM |
| Insertion Loss | ≤0.2dB | ≤0.2dB |
| Mating Durability(500 timer) | Additional Loss≤0.1dB |
| Temperature Stability | Additional Loss≤0.2dB |
| Operating Temperature | -40℃~+85℃ |
| Storage Temperature | -40℃~+85℃ |

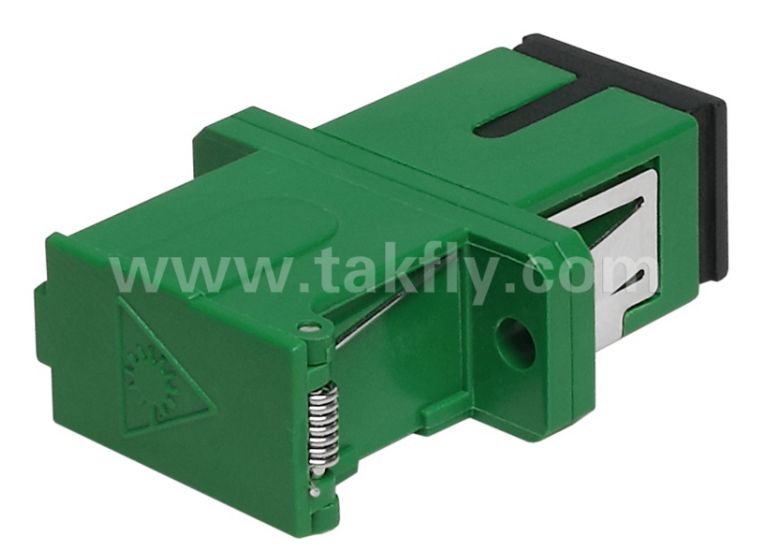

Product Picture
Why Choose TAKFLY
- Professional manufacturer with more than 25 years manufacturing experience in Fiber optic products
- More than 450 assembly workers with 3 years experience
- More than 10 R&D Engineers
- 16 Sets Germany imported Injection Machine and 16 Production Lines
- More than 30 sets of Testing Machines: OTDR,3D,VFL,IL&RL test instrument; tension strength tester, Crush Resistance tester, Power meter tester, light checker, etc.
- OEM Brand is acceptable
- Exhibition: OFC, ECOC, CommunicAsia, NETCOM, AFRICACOM, SVIAZ ICT, CommunicIndonesia, Global Source Electronic Exhibition, etc.
Quality Control
- Spot check the raw material incoming inspection before production
- Fully check after every individual process finished
- Fully check production half done
- Fully check the finished products before packing
- Spot check before shipping
Delivery
- Samples: 1-3 working days
- Mass Production Order: 3-7 working days
- Packaging: Plastic Bag, Carton and Pallet are available according to your request
